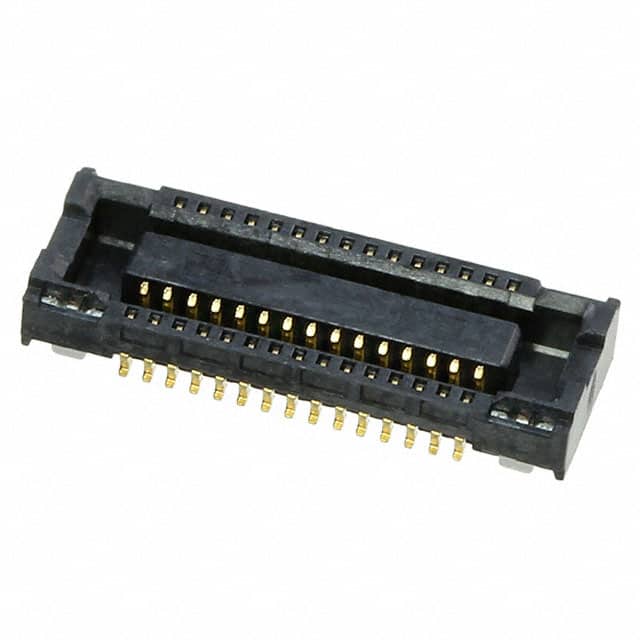

0.40毫米（ 0.016 “ ）间距板对板SlimStack ™插座，表面贴装，双排，垂直叠加， 1.50毫米（ .059 ” ）堆叠高度，采用了节省空间的J- BendLeads ， 30电路，无铅 0.40mm .016" Pitch Board-to-Board SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical Stacking, 1.50mm .059" Stacking Height, with Space Saving J-BendLeads, 30 Circuits, Lead-free
30 位置 插座，中央带触点 表面贴装型 镀金
得捷:
CONN RCPT 30POS SMD GOLD
立创商城:
0513380374
艾睿:
Safety is an important concern when designing electronic devices. Molex&s;s board to board 0513380374 header connector helps protect your equipment from accidental shortages. This RCP connector&s;s 30 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a maximum voltage rating of 50 VDC|50VAC. It has a receptacle type gender. It has a straight body orientation. Its pitch is 0.4 mm. This device has a maximum current rating of 0.3 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 9.26 mm long, 1.4 mm tall and 3.4 mm deep. It uses the solder termination method. This connector has an operating temperature of -25 to 85 °C. 0513380374 is housed in black liquid crystal polymer.
Verical:
Conn Board to Board RCP 30 POS 0.4mm Solder ST SMD SlimStack™ T/R
Win Source:
30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
