0529910308

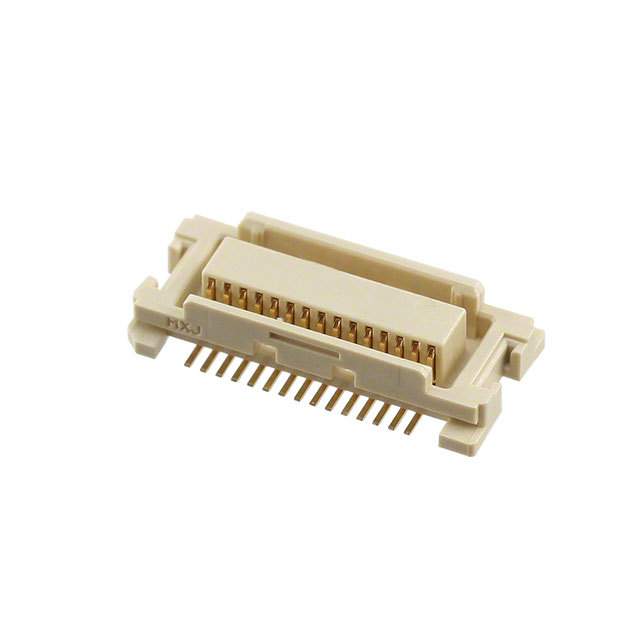

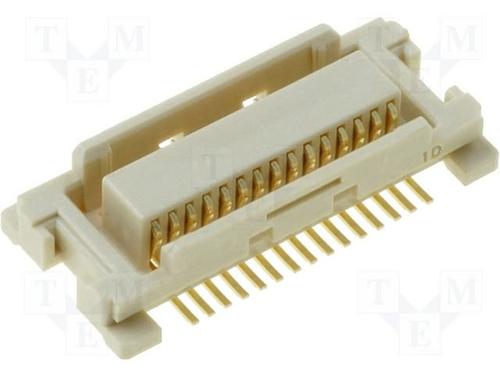

0.50毫米（ 0.020 “ ）间距SlimStack ™插座，表面贴装，双排，垂直， 3.00and 4.00毫米（ 0.118和0.157 ” ）堆叠高度，下围尺寸版本，白色， 30Circuits 0.50mm .020" Pitch SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical, 3.00and 4.00mm .118 and .157" Stacking Heights, Lower Circuit Size Version, White, 30Circuits

30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

得捷:
CONN RCPT 30POS SMD GOLD

立创商城:
0529910308

艾睿:
Reduce safety concerns with this board to board 0529910308 header connector from Molex which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This RCP connector&s;s 30 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. Its pitch is 0.5 mm. It has a maximum voltage rating of 50 V. This is a 2-row connector. It has a receptacle type gender. This device has a maximum current rating of 0.5 A/contact. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C. 0529910308 is housed in white liquid crystal polymer. This product is 11.3 mm long, 2.27 mm tall and 5.4 mm deep.

安富利:
Conn Board to Board RCP 30 POS 0.5mm Solder ST SMD Embossed T/R

Chip1Stop:
Conn Board to Board RCP 30 POS 0.5mm Solder ST SMD Embossed T/R

Verical:
Conn Board to Board RCP 30 POS 0.5mm Solder ST SMD SlimStack™ T/R
