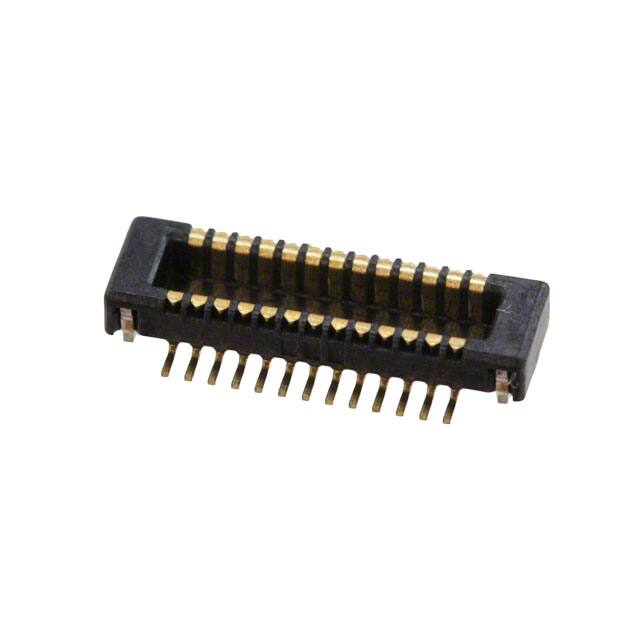

0.40毫米（ 0.016 “ ）间距板对板SlimStack ™插件，表面贴装，双RowVertical堆叠， 1.50毫米（ .059 ” ）堆叠高度，无铅， 26电路 0.40mm .016" Pitch Board-to-Board SlimStack™ Plug, Surface Mount, Dual RowVertical Stacking, 1.50mm .059" Stacking Height, Lead-free, 26 Circuits
26 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
得捷:
CONN PLUG 26POS SMD GOLD
艾睿:
Mount this board to board 0559092674 header connector from Molex on a jumper post on your PCB to support physical configuration options. This PL connector&s;s 26 contacts that are made out of brass and plated with gold over nickel. It has a straight body orientation. This is a 2-row connector. It has a plug type gender. It has a maximum voltage rating of 50 VDC|50VAC. Its pitch is 0.4 mm. This device has a maximum current rating of 0.3 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. 0559092674 is housed in black glass filled liquid crystal polymer. This product is 7.2 mm long, 1.14 mm tall and 2.13 mm deep. It uses the solder termination method. This connector has an operating temperature of -25 to 85 °C.
安富利:
Conn Board to Board PL 26 POS 0.4mm Solder ST SMD Embossed T/R
Verical:
Conn Board to Board PL 26 POS 0.4mm Solder ST SMD SlimStack™ T/R
