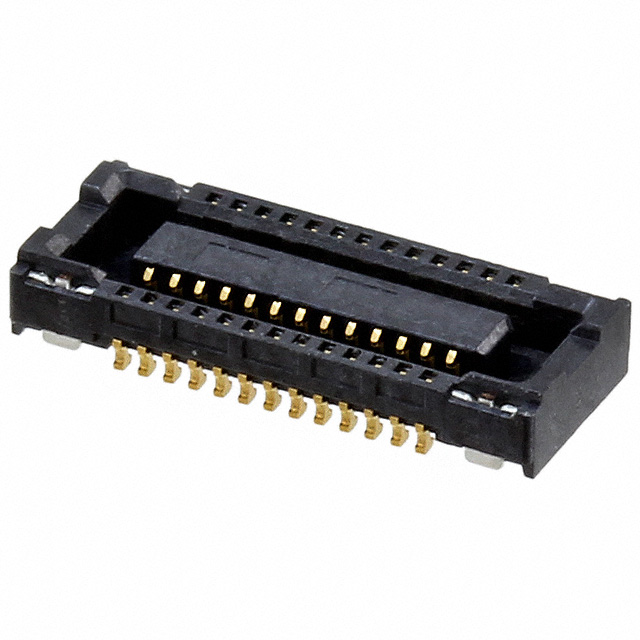

0.40毫米（ 0.016 “ ）间距板对板SlimStack ™插座，表面贴装， DualRow ，垂直叠加， 1.50毫米（ .059 ” ）堆叠高度，采用了节省空间的J- BendLeads ， 26电路，无铅 0.40mm .016" Pitch Board-to-Board SlimStack™ Receptacle, Surface Mount, DualRow, Vertical Stacking, 1.50mm .059" Stacking Height, with Space Saving J-BendLeads, 26 Circuits, Lead-free
26 位置 插座，中央带触点 表面贴装型 镀金
得捷:
CONN RCPT 26POS SMD GOLD
立创商城:
0513382674
贸泽:
Molex .4MM REC 26P VT SMT
艾睿:
Reduce safety concerns with this board to board 0513382674 header connector from Molex which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This RCP connector&s;s 26 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 50 VDC|50VAC. It has a straight body orientation. This is a 2-row connector. It has a receptacle type gender. Its pitch is 0.4 mm. This device has a maximum current rating of 0.3 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. 0513382674 is housed in black liquid crystal polymer. This connector has an operating temperature of -25 to 85 °C. This product is 8.46 mm long, 1.4 mm tall and 3.4 mm deep. It uses the solder termination method.
