0465574145

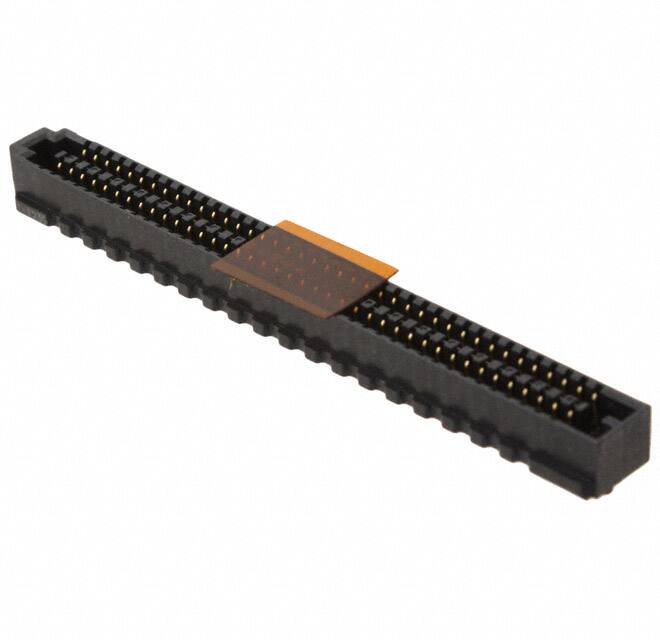

1.27毫米（ .050 “ ）由1.27毫米（ .050 ” ）间距SEARAY *修身插座， 160电路， 5.00毫米（ 0.196 “ ）未交配高度， 4行，带销，焊接费用™无铅 1.27mm .050" by 1.27mm .050" Pitch SEARAY* Slim Receptacle, 160 Circuits, 5.00mm .196" Unmated Height, 4 Rows, With Pegs, Solder Charge™ Lead Free

160 Position Connector High Density Array, Female Surface Mount Gold

得捷:
CONN HD ARRAY RCPT 160P SMD GOLD

立创商城:
0465574145

艾睿:
Support physical configuration options for jumper posts by mounting this board to board 0465574145 header connector from Molex. This RCP connector&s;s 160 contacts that are made out of copper alloy and plated with gold over nickel. This is a 4-row connector. It has a receptacle type gender. Its pitch is 1.27 mm. It has a straight body orientation. It has a maximum voltage rating of 240 VAC. This device has a maximum current rating of 2.7 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This connector has an operating temperature of -55 to 125 °C. This product is 57.96 mm long, 5.05 mm tall and 7.06 mm deep. It uses the solder termination method. 0465574145 is housed in black liquid crystal polymer.
