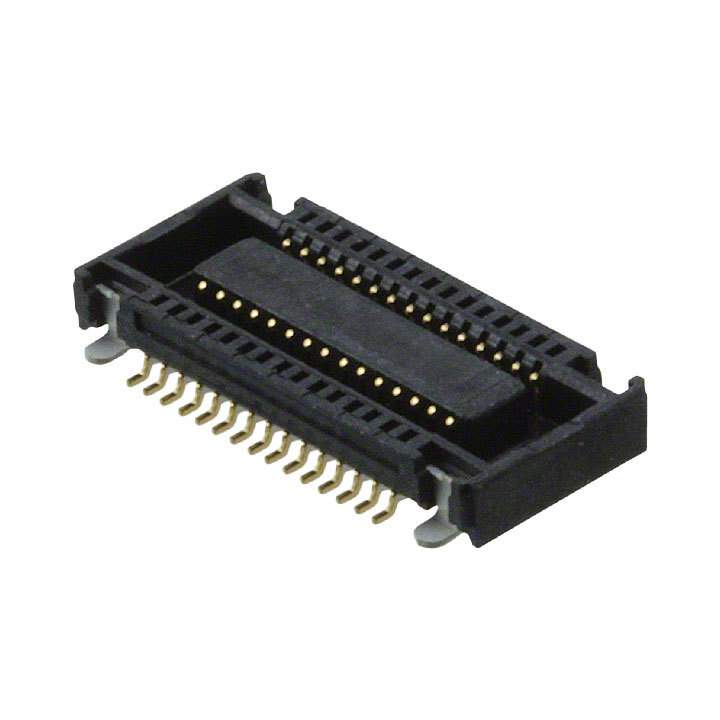

0.50毫米（ 0.020 “ ）间距SlimStack ™插座，表面贴装，双排，垂直， 2.00and 3.00毫米（ 0.079和0.118 ” ）堆叠高度，用焊片， 30电路，无铅 0.50mm .020" Pitch SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical, 2.00and 3.00mm .079 and .118" Stacking Heights, with Solder Tabs, 30 Circuits, Leadfree
30 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
得捷:
CONN RCPT 30POS SMD GOLD
艾睿:
Molex&s;s board to board 0543630389 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This RCP connector&s;s 30 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 50 VDC|50VAC. Its pitch is 0.5 mm. It has a straight body orientation. It has a receptacle type gender. This is a 2-row connector. This device has a maximum current rating of 0.5 A/contact. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This connector has an operating temperature of -25 to 85 °C. It uses the solder termination method. 0543630389 is housed in black liquid crystal polymer. This product is 11.4 mm long, 1.5 mm tall and 5.84 mm deep.
Verical:
Conn Board to Board RCP 30 POS 0.5mm Solder ST Top Entry SMD SlimStack™ T/R
