0547220404

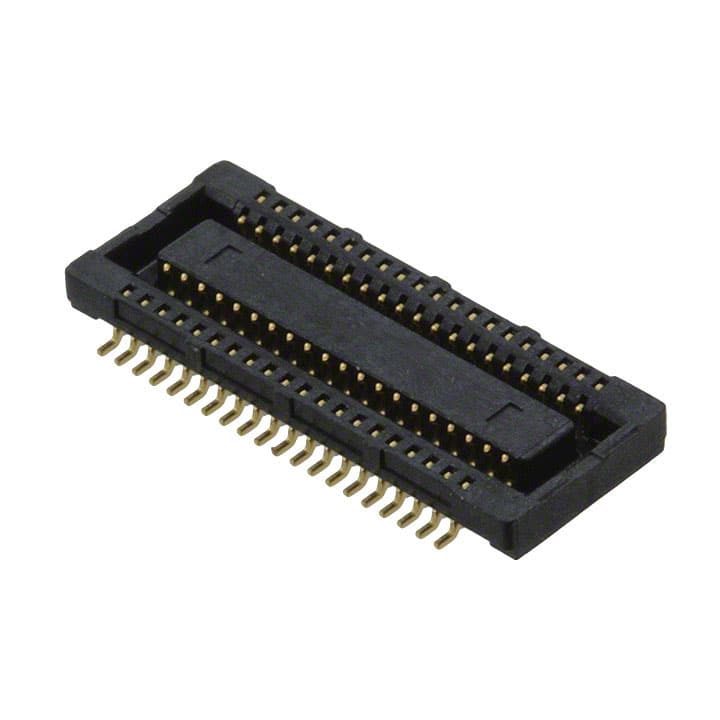

0.50毫米（ 0.020 “ ）间距SlimStack ™插座，表面贴装，双排，垂直1.50毫米（ .059 ” ）堆叠高度，下围尺寸版本， 40电路，镀金镍屏障板之间的联系和尾 0.50mm .020" Pitch SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical 1.50mm .059" Stacking Height, Lower Circuit Size Version, 40 Circuits, Gold Plating with Nickel Barrier Plating Between Contact and Tail

40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

得捷:
CONN RCPT 40POS SMD GOLD

立创商城:
0547220404

艾睿:
As an added safety precaution, the board to board 0547220404 header connector from Molex will prevent and protect components on your circuit board from accidentally touching each other. This RCP connector&s;s 40 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. Its pitch is 0.5 mm. This is a 2-row connector. It has a receptacle type gender. It has a maximum voltage rating of 50 VAC. This device has a maximum current rating of 0.5 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It uses the solder termination method. This connector has an operating temperature of -25 to 85 °C. 0547220404 is housed in black glass filled liquid crystal polymer. This product is 12.6 mm long, 1.15 mm tall and 6 mm deep.

安富利:
Conn Board to Board RCP 40 POS 0.5mm Solder ST SMD Embossed T/R

Verical:
Conn Board to Board RCP 40 POS 0.5mm Solder ST SMD SlimStack™ T/R
