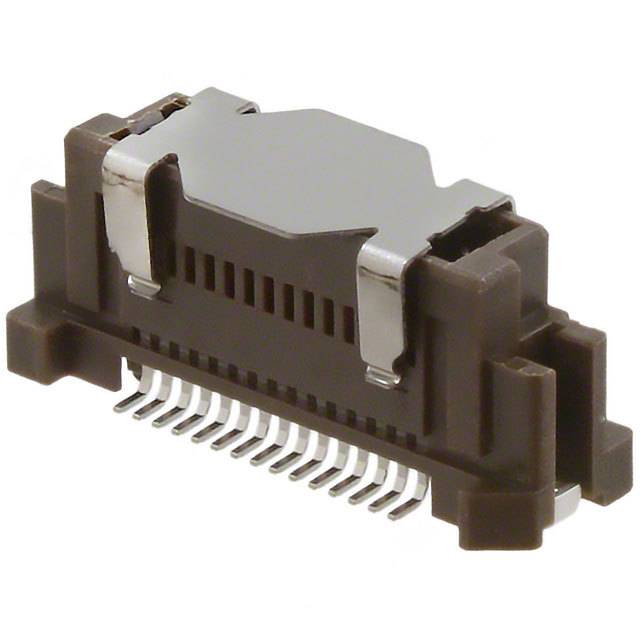

0.635毫米（ 0.025 “ ）间距SlimStack ™接头，表面贴装，双排， VerticalStacking ， 8.00和14.00毫米（ 0.315和0.551 ” ）堆叠高地，无铅， 30 Circuitswith压纹带封面与包装 0.635mm .025" Pitch SlimStack™ Header, Surface Mount, Dual Row, VerticalStacking, 8.00 and 14.00mm .315 and .551" Stacking Heights, Lead-free, 30 Circuitswith Embossed Tape with Cover Packaging
30 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
得捷:
CONN PLUG 30POS SMD GOLD
立创商城:
0536470374
艾睿:
Use this board to board 0536470374 header connector from Molex where IDC ribbon cables are used. This PL connector&s;s 30 contacts that are made out of copper alloy and plated with gold over nickel. This is a 2-row connector. Its pitch is 0.635 mm. It has a straight body orientation. It has a plug type gender. It has a maximum voltage rating of 100 V. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 16.4 mm long, 7 mm tall and 5 mm deep. It uses the solder termination method. 0536470374 is housed in brown polyphenylene sulfide. This connector has an operating temperature of -55 to 85 °C.
