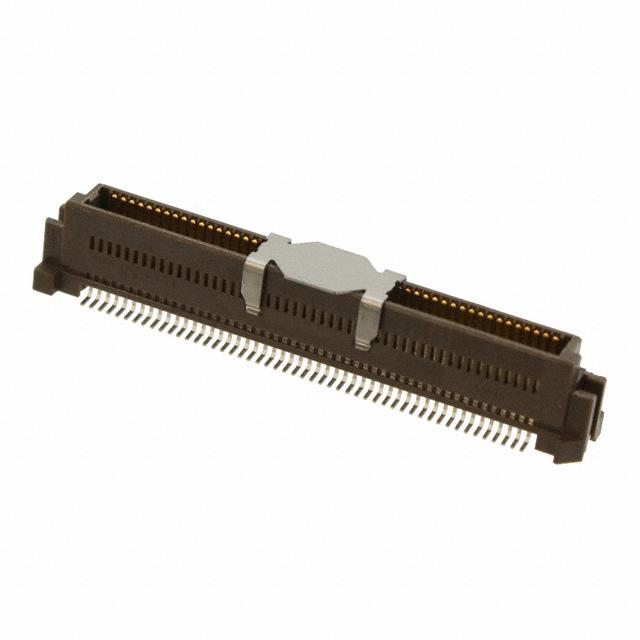

0.635毫米（ 0.025 “ ）间距SlimStack ™接头，表面贴装，双排， VerticalStacking ， 8.00和14.00毫米（ 0.315和0.551 ” ）堆叠高地，无铅， 100Circuits ，以压纹带封面与包装 0.635mm .025" Pitch SlimStack™ Header, Surface Mount, Dual Row, VerticalStacking, 8.00 and 14.00mm .315 and .551" Stacking Heights, Lead-free, 100Circuits, with Embossed Tape with Cover Packaging
100 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
得捷:
CONN PLUG 100POS SMD GOLD
艾睿:
Safety is an important concern when designing electronic devices. Molex&s;s board to board 0536471074 header connector helps protect your equipment from accidental shortages. This PL connector&s;s 100 contacts that are made out of copper alloy and plated with gold over nickel. This is a 2-row connector. It has a maximum voltage rating of 100 V. It has a plug type gender. Its pitch is 0.635 mm. It has a straight body orientation. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 38.62 mm long, 7 mm tall and 5.2 mm deep. 0536471074 is housed in brown polyphenylene sulfide. It uses the solder termination method. This connector has an operating temperature of -55 to 85 °C.
Verical:
Conn Board to Board PL 100 POS 0.635mm Solder ST SMD SlimStack™ T/R
