0465561145

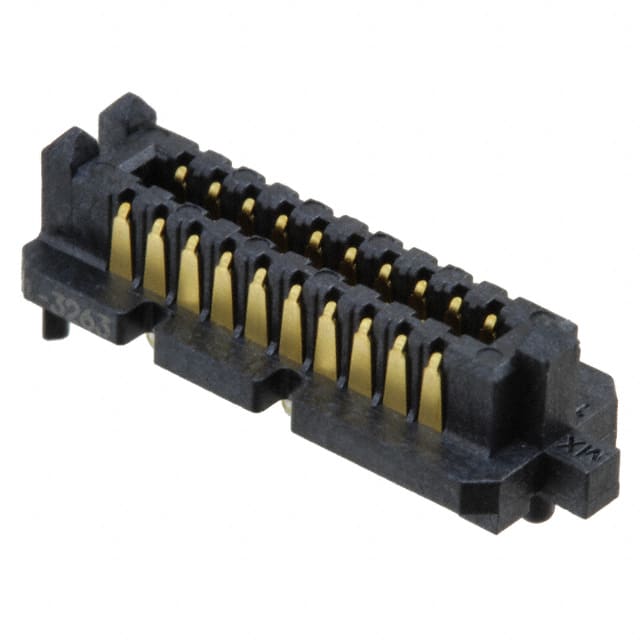

1.27毫米（ .050 “ ）由1.27毫米（ .050 ” ）间距SEARAY *超薄插头， 40电路， 2.00毫米（ 0.078 “ ）未交配高度， 4行，带销，焊接充电™无铅 1.27mm .050" by 1.27mm .050" Pitch SEARAY* Slim Plug, 40 Circuits, 2.00mm .078" Unmated Height, 4 Rows, With Pegs, Solder Charge™ Lead-free

40 Position Connector High Density Array, Male Surface Mount Gold

得捷:
CONN HD ARRAY PLUG 40P SMD GOLD

艾睿:
Use this board to board 0465561145 header connector from Molex where IDC ribbon cables are used. This PL connector&s;s 40 contacts that are made out of copper alloy and plated with gold over nickel. It has a plug type gender. It has a straight body orientation. Its pitch is 1.27 mm. It has a maximum voltage rating of 240 VAC. This is a 4-row connector. This device has a maximum current rating of 2.7 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It uses the solder termination method. This product is 7.06 mm deep. 0465561145 is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Board to Board HDR 40 POS 1.27mm Solder ST SMD Embossed T/R

Win Source:
40 Position Connector High Density Array, Male Surface Mount Gold
