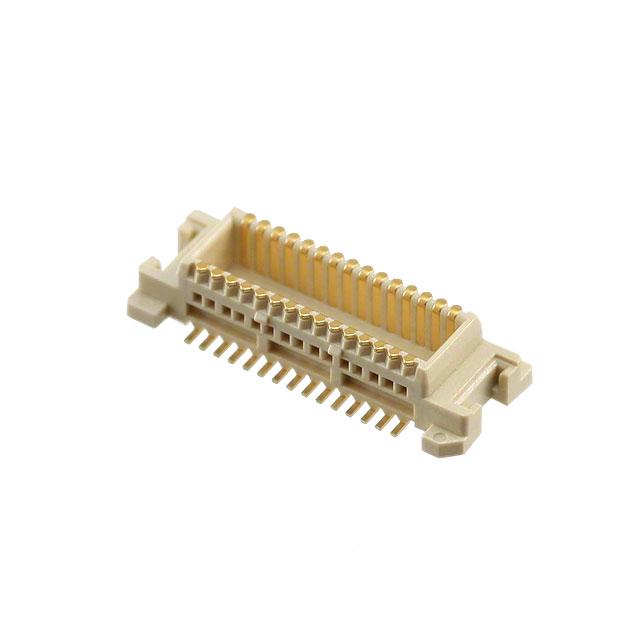

0.50毫米（ 0.020 “ ）间距SlimStack ™插件，表面贴装，双排，垂直， 3.00毫米（ 0.118 ” ）堆叠高度， 30电路，无需真空拾取磁带 0.50mm .020" Pitch SlimStack™ Plug, Surface Mount, Dual Row, Vertical, 3.00mm .118" Stack Height, 30 Circuits, without Vacuum Pick-up Tape
30 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
得捷:
CONN PLUG 30POS SMD GOLD
艾睿:
Mounting this board to board 0537480308 header connector from Molex to your printed circuit board can help you support multiple physical configuration options. This PL connector&s;s 30 contacts that are made out of brass and plated with gold over nickel. Its pitch is 0.5 mm. This is a 2-row connector. It has a maximum voltage rating of 50 VDC|50VAC. It has a straight body orientation. It has a plug type gender. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. 0537480308 is housed in white liquid crystal polymer. This product is 11.3 mm long, 2.4 mm tall and 4.3 mm deep.
安富利:
Conn Board to Board PL 30 POS 0.5mm Solder ST SMD Embossed T/R
TME:
Connector: PCB to PCB; female; PIN:30; 0.5mm; H:3mm; SMT
