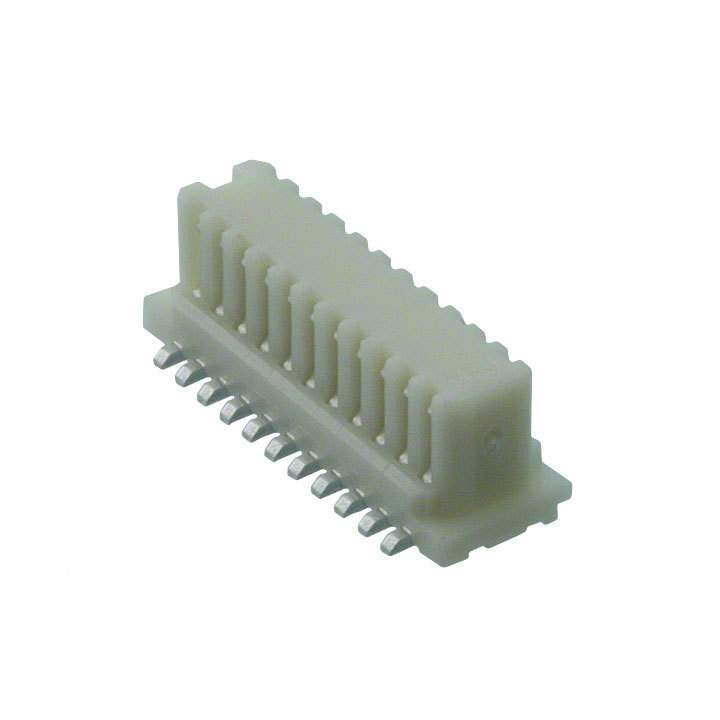

0.80毫米（ .031 “ ）间距板对板插座，表面贴装，双排， 22Circuits ，无铅 0.80mm .031" Pitch Board-to-Board Receptacle, Surface Mount, Dual Row, 22Circuits, Lead-free
22 Position Connector Receptacle, Center Strip Contacts Surface Mount Tin
得捷:
CONN RECEPT 22POS .80MM DUAL SMD
立创商城:
0524652271
艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this board to board 0524652271 header connector from Molex. This RCP connector&s;s 22 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a receptacle type gender. This is a 2-row connector. Its pitch is 0.8 mm. It has a straight body orientation. It has a maximum voltage rating of 50 V. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It uses the solder termination method. This product is 10.4 mm long, 3.55 mm tall and 4.2 mm deep. This connector has an operating temperature of -40 to 105 °C. 0524652271 is housed in natural polyamide.
Verical:
Conn Board to Board RCP 22 POS 0.8mm Solder ST SMD T/R
