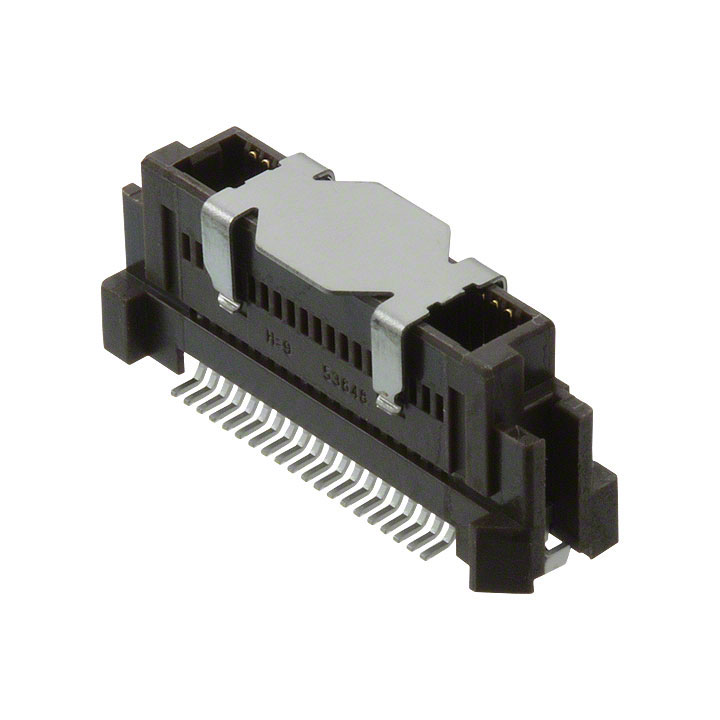

0.635毫米（ 0.025 “ ）间距SlimStack ™插件，表面贴装，双排，垂直叠加9.00和15.00毫米（ 0.354和0.591 ” ）堆叠高地，无铅， 40电路， withEmbossed胶带包装封面 0.635mm .025" Pitch SlimStack™ Plug, Surface Mount, Dual Row, Vertical Stacking 9.00 and 15.00mm .354 and .591" Stacking Heights, Lead-free, 40 Circuits, withEmbossed Tape with Cover Packaging
40 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
得捷:
CONN PLUG 40POS SMD GOLD
艾睿:
Are you looking for a solution to support physical configuration options on your PCB? Then mount this board to board 0536490474 header connector from Molex on your PCB today! This HDR connector&s;s 40 contacts that are made out of copper alloy and plated with gold over nickel. It has a straight body orientation. It has a header type gender. This is a 2-row connector. Its pitch is 0.64 mm. It has a maximum voltage rating of 100 VAC. This device has a maximum current rating of 0.5 A/contact. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It uses the solder termination method. 0536490474 is housed in natural glass filled polyphenylene sulfide. This product is 5.2 mm deep. This connector has an operating temperature of -55 to 85 °C.
安富利:
Conn Board to Board HDR 40 POS 0.64mm Solder ST SMD Embossed T/R
