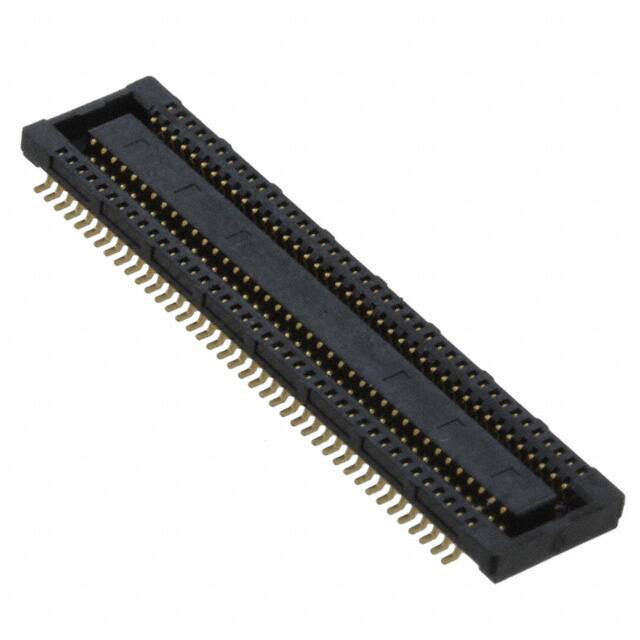

0.50毫米（ 0.020 “ ）间距SlimStack ™插座，表面贴装，双排， Vertical1.50mm （ .059 ” ）堆叠高度，下围尺寸版本， 80电路，黄金Platingwith镍阻挡板之间的联系和尾 0.50mm .020" Pitch SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical1.50mm .059" Stacking Height, Lower Circuit Size Version, 80 Circuits, Gold Platingwith Nickel Barrier Plating Between Contact and Tail
80 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
得捷:
CONN RCPT 80POS SMD GOLD
艾睿:
Molex brings you their board to board 0547220804 header connector, an important safety tool for protecting your electronic components from accidental damage. This RCP connector&s;s 80 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 50 V. It has a receptacle type gender. It has a straight body orientation. This is a 2-row connector. Its pitch is 0.5 mm. This device has a maximum current rating of 0.5 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It uses the solder termination method. 0547220804 is housed in black liquid crystal polymer. This product is 22.6 mm long, 1.15 mm tall and 5 mm deep. This connector has an operating temperature of -40 to 105 °C.
安富利:
Conn Board to Board RCP 80 POS 0.5mm Solder ST SMD Embossed T/R
