0859-0012

0859-0012图片1
0859-0012图片2
0859-0012图片3
0859-0012图片4
0859-0012图片5
0859-0012图片6
0859-0012概述

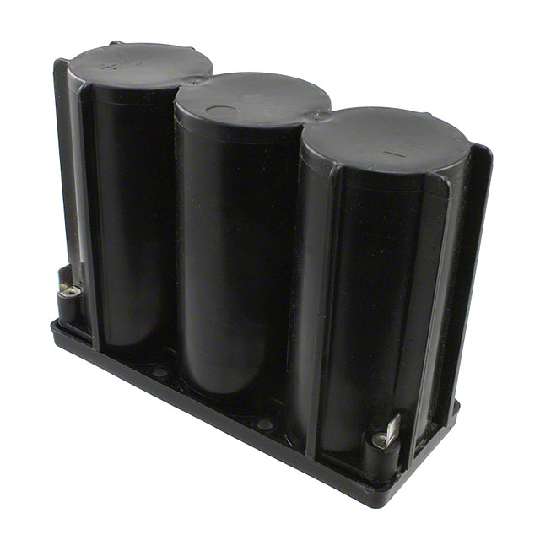

Rechargeable Battery, Cyclon Series, Single Cell, 6V, Lead Acid, 8Ah, E, Quick Connect

The Cyclon series Rechargeable Battery has a longer service life, fewer replacements and combined with higher reliability. It has 50PSI safety valve which lets gases escape, then automatically reseals, so there"s no risk of excessive gas accumulation within the battery or dry out failure from repeated recharges. It is made from 99.99% pure lead, CYCLON battery plates are extremely thin, so they offer more surface area then conventional batteries and far more power. High purity acid is absorbed right into the Absorbed Glass Mat AGM plate separators, so the CYCLON battery provides leak-proof operation in any position. The CYCLON battery"s metal outer jacket offers extreme shock, vibration, temperature and flammability protection.

.
Building blocs that provide optimum reliability for customised and specialist battery applications
.
Resealable safety valve
.
Steel can enclosure
.
Rugged construction
.
Extremely low self-discharge rate providing up to 2 years shelf-life
.
Pure lead design offers highest recharge efficiency
.
Very high cycle life delivers up to 300 cycles 100% Depth of Discharge
.
Greatest high-rate power density, per unit weight
.
Up to 10-year design life at 25°C
.
Proven in-the-field technology and UL recognised components
.
C5 rate, to 80% of rated capacity
.
-65 to 80°C Temperature operating range
0859-0012中文资料参数规格
技术参数

输出电压 6.00 V

额定电压 6 V

外形尺寸

高度 101.6 mm

物理参数

重量 1.43 kg

工作温度 -85℃ ~ 85℃

其他

产品生命周期 Active

制造应用 Power Management

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0859-0012
型号: 0859-0012
制造商: EnerSys
描述:Rechargeable Battery, Cyclon Series, Single Cell, 6V, Lead Acid, 8Ah, E, Quick Connect
