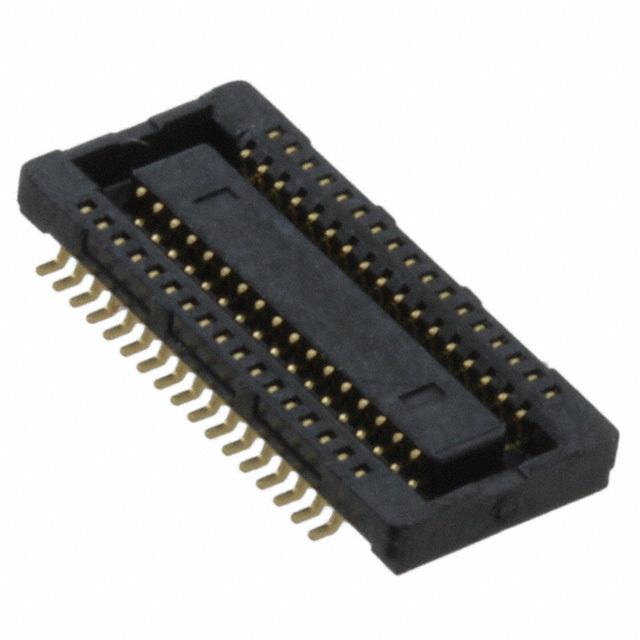

0.50毫米（ 0.020 “ ）间距SlimStack ™插座，表面贴装，双排， Vertical1.50mm （ .059 ” ）堆叠高度，下围尺寸版本， 34电路，镀金镍屏障板之间的联系和尾 0.50mm .020" Pitch SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical1.50mm .059" Stacking Height, Lower Circuit Size Version, 34 Circuits, Gold Plating with Nickel Barrier Plating Between Contact and Tail
34 位置 插座，中央带触点 表面贴装型 镀金
得捷:
CONN RCPT 34POS SMD GOLD
艾睿:
As an added safety precaution, the board to board 0547220344 header connector from Molex will prevent and protect components on your circuit board from accidentally touching each other. This RCP connector&s;s 34 contacts that are made out of phosphor bronze and plated with gold. This is a 2-row connector. It has a receptacle type gender. It has a maximum voltage rating of 50 V. It has a straight body orientation. Its pitch is 0.5 mm. This device has a maximum current rating of 0.5 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. This product is 11.1 mm long, 1.15 mm tall and 6 mm deep. 0547220344 is housed in black liquid crystal polymer.
