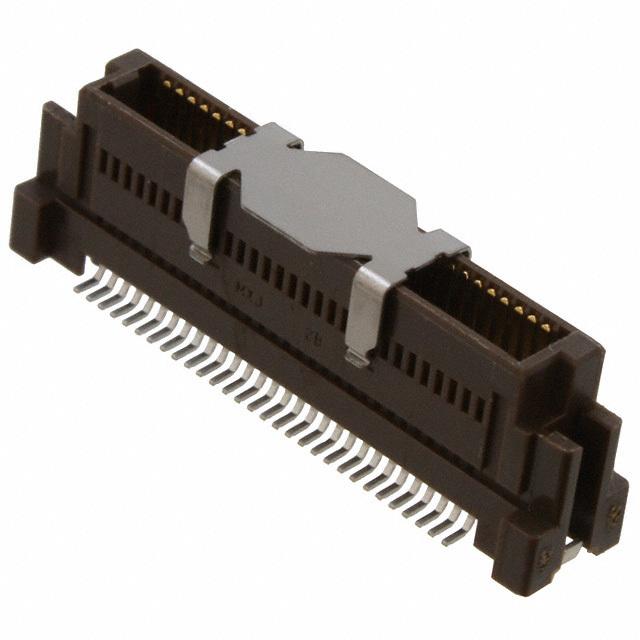

0.635毫米（ 0.025 “ ）间距SlimStack ™插件，表面贴装，双排，垂直Stacking9.00和15.00毫米（ 0.354和0.591 ” ）堆叠高地，无铅， 60电路， withEmbossed胶带包装封面 0.635mm .025" Pitch SlimStack™ Plug, Surface Mount, Dual Row, Vertical Stacking9.00 and 15.00mm .354 and .591" Stacking Heights, Lead-free, 60 Circuits, withEmbossed Tape with Cover Packaging
60 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
得捷:
CONN PLUG 60POS SMD GOLD
立创商城:
0536490674
艾睿:
Think of Molex&s;s board to board 0536490674 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 60 contacts that are made out of copper alloy and plated with gold over nickel. This is a 2-row connector. Its pitch is 0.64 mm. It has a straight body orientation. It has a maximum voltage rating of 100 V. It has a header type gender. This device has a maximum current rating of 0.5 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This connector has an operating temperature of -55 to 85 °C. It uses the solder termination method. This product is 5.2 mm deep. 0536490674 is housed in natural glass filled polyphenylene sulfide.
