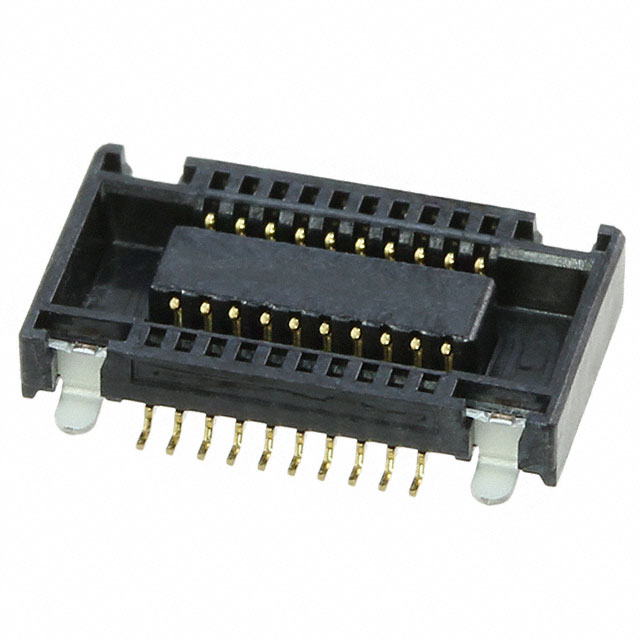

0.50毫米（ 0.020 “ ）间距SlimStack ™插座，表面贴装，双排，垂直， 2.00and 3.00毫米（ 0.079和0.118 ” ）堆叠高度，用焊片， 20电路，无铅 0.50mm .020" Pitch SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical, 2.00and 3.00mm .079 and .118" Stacking Heights, with Solder Tabs, 20 Circuits, Leadfree
20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
得捷:
CONN RCPT 20POS SMD GOLD
立创商城:
0543630289
艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this board to board 0543630289 header connector from Molex. This RCP connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. This is a 2-row connector. Its pitch is 0.5 mm. It has a maximum voltage rating of 50 VDC|50VAC. It has a receptacle type gender. This device has a maximum current rating of 0.5 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 8.9 mm long, 1.5 mm tall and 5.84 mm deep. 0543630289 is housed in black liquid crystal polymer. This connector has an operating temperature of -25 to 85 °C. It uses the solder termination method.
Chip1Stop:
Conn Board to Board RCP 20 POS 0.5mm Solder ST SMD SlimStack™ Embossed T/R
Verical:
Conn Board to Board RCP 20 POS 0.5mm Solder ST SMD SlimStack™ T/R
