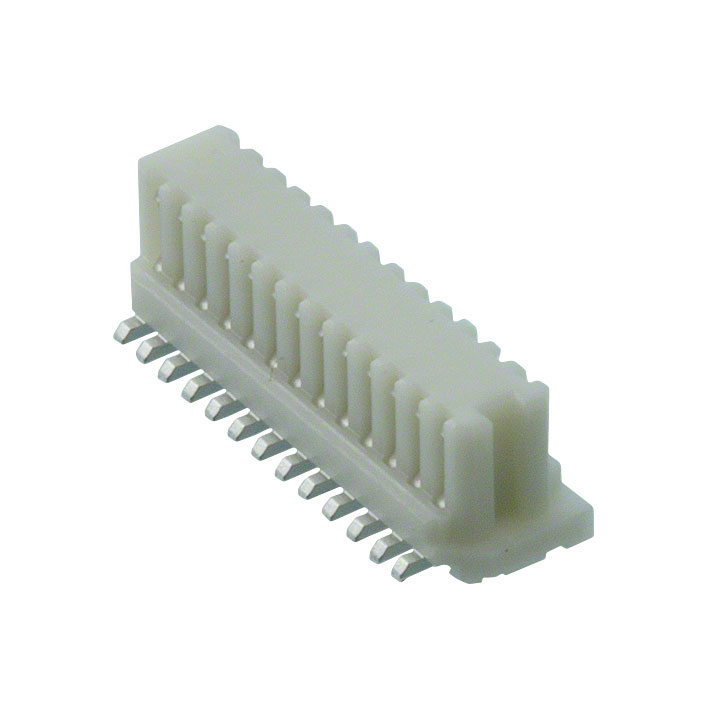

0.80毫米（ .031 “ ）间距板对板插座，表面贴装，双排， 26Circuits ，无铅 0.80mm .031" Pitch Board-to-Board Receptacle, Surface Mount, Dual Row, 26Circuits, Lead-free
26 Position Connector Receptacle, Center Strip Contacts Surface Mount Tin
得捷:
CONN RCPT 26POS SMD TIN
艾睿:
Mount this board to board 0524652671 header connector from Molex on a jumper post on your PCB to support physical configuration options. This RCP connector&s;s 26 contacts that are made out of phosphor bronze and plated with tin over nickel. Its pitch is 0.8 mm. It has a straight body orientation. It has a maximum voltage rating of 50 V. It has a receptacle type gender. This is a 2-row connector. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It uses the solder termination method. 0524652671 is housed in natural polyamide. This product is 12 mm long, 3.55 mm tall and 4.2 mm deep. This connector has an operating temperature of -40 to 105 °C.
