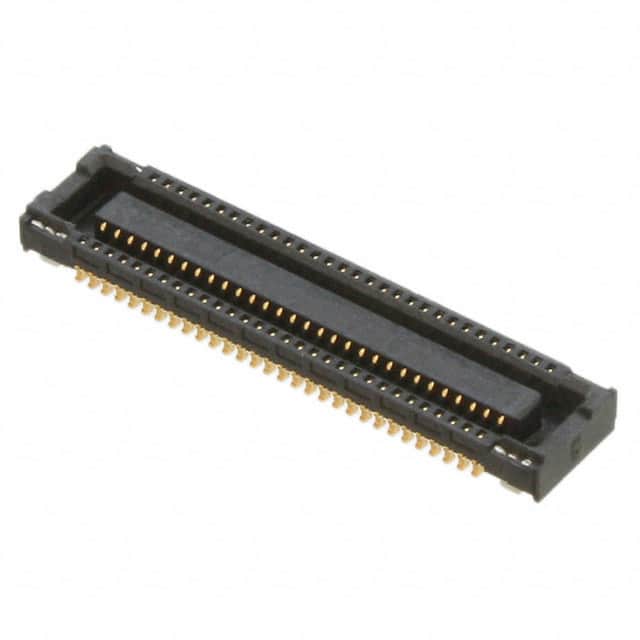

0.40毫米（ 0.016 “ ）间距板对板SlimStack ™插座，表面贴装，双排，垂直叠加，具有节省空间的J-弯信息， 60电路，无铅 0.40mm .016" Pitch Board-to-Board SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical Stacking, with Space Saving J-Bend Leads, 60 Circuits, Lead-free
60 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
得捷:
CONN RCPT 60POS SMD GOLD
立创商城:
0513380674
艾睿:
Think of Molex&s;s board to board 0513380674 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This RCP connector&s;s 60 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 50 VDC|50VAC. It has a straight body orientation. This is a 2-row connector. Its pitch is 0.4 mm. It has a receptacle type gender. This device has a maximum current rating of 0.3 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This connector has an operating temperature of -25 to 85 °C. It uses the solder termination method. This product is 15.26 mm long, 1.4 mm tall and 3.4 mm deep. 0513380674 is housed in black liquid crystal polymer.
