0459713185

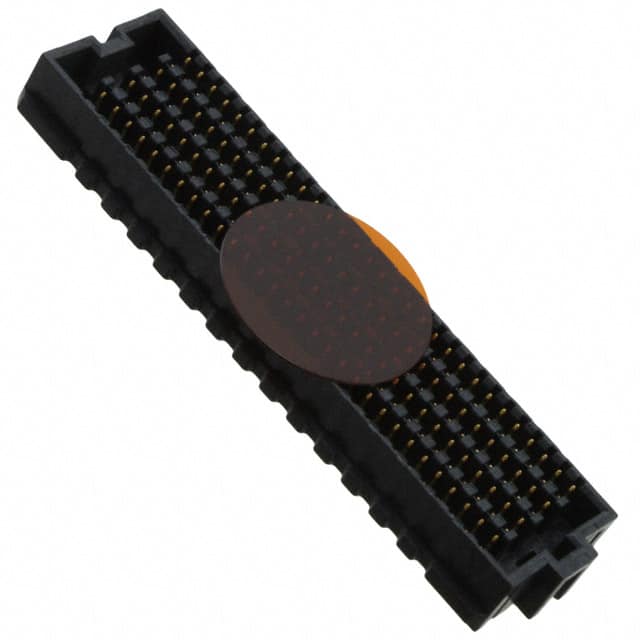

1.27毫米（ .050 “ ）由1.27毫米（ .050 ” ）间距SEARAY *插座， 240电路， 5.00毫米（ 0.196 “ ）未交配高度， 8行，带销，焊接费用™无铅 1.27mm .050" by 1.27mm .050" Pitch SEARAY* Receptacle, 240 Circuits, 5.00mm .196" Unmated Height, 8 Rows, With Pegs, Solder Charge™ Lead Free

240 Position Connector High Density Array, Female Surface Mount Gold

得捷:
CONN HD ARRAY RCPT 240P SMD GOLD

立创商城:
0459713185

艾睿:
Are you looking for a solution to support physical configuration options on your PCB? Then mount this board to board 0459713185 header connector from Molex on your PCB today! This RCP connector&s;s 240 contacts that are made out of copper alloy and plated with gold over nickel. This is a 8-row connector. It has a maximum voltage rating of 240 VAC. It has a receptacle type gender. Its pitch is 1.27 mm. It has a straight body orientation. This device has a maximum current rating of 2.7 A/contact. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This connector has an operating temperature of -55 to 125 °C. This product is 45.26 mm long, 5 mm tall and 12.14 mm deep. It uses the solder termination method. 0459713185 is housed in black liquid crystal polymer.

安富利:
Conn Board to Board RCP 240 POS 1.27mm Solder ST SMD Embossed T/R

Chip1Stop:
Conn Board to Board RCP 240 POS 1.27mm Solder ST SMD Embossed T/R
