0.50毫米（ 0.020 “ ）间距SlimStack ™插座，表面贴装，双排，垂直， 2.50毫米（ .098 ” ）堆叠高度，镀金与镍阻挡层， 16电路 0.50mm .020" Pitch SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical,2.50mm .098" Stacking Height, Gold Plating with Nickel Barrier, 16 Circuits
16 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
得捷:
CONN RCPT 16POS SMD GOLD
立创商城:
0541020164
艾睿:

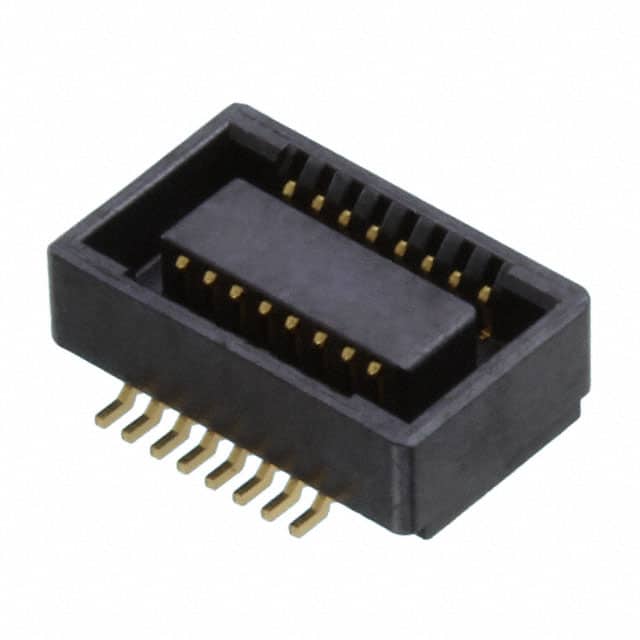

As an added safety precaution, the board to board 0541020164 header connector from Molex will prevent and protect components on your circuit board from accidentally touching each other. This RCP connector&s;s 16 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. It has a maximum voltage rating of 50 V. It has a receptacle type gender. It has a straight body orientation. Its pitch is 0.5 mm. This device has a maximum current rating of 0.5 A/contact. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. 0541020164 is housed in black glass filled liquid crystal polymer. This connector has an operating temperature of -40 to 105 °C. This product is 6.6 mm long, 2.1 mm tall and 5.3 mm deep. It uses the solder termination method.
