0511461200概述

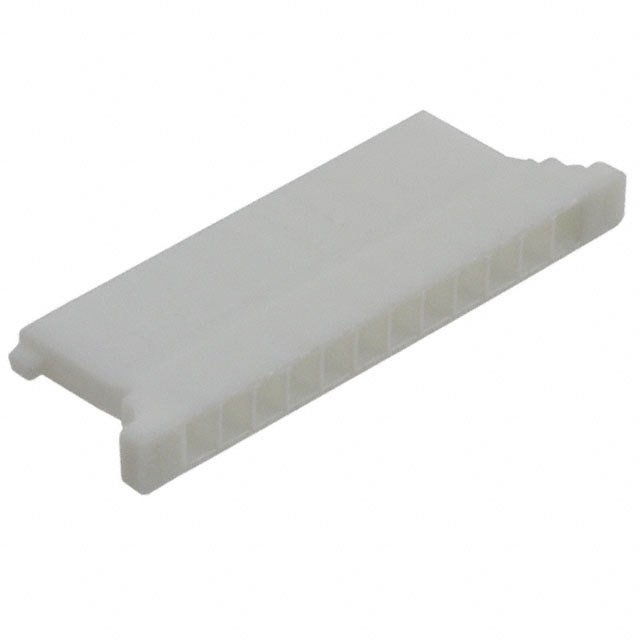

1.25毫米（ .049 “ ）间距的PanelMate ™线对板插座外壳，超LowProfile ， 12电路 1.25mm .049" Pitch PanelMate™ Wire-to-Board Receptacle Housing, Ultra LowProfile, 12 Circuits
Ensure a complete connection between two different circuit boards is made using "s discrete wire housing. This RCP connector has 12 RCP contacts. It has a receptacle type gender. This is a 1-row connector. Its pitch is 1.25 mm. It has a maximum voltage rating of 125 V. It has a straight body orientation. This device has a maximum current rating of 1 A/contact. This product is 18.22 mm long, 1.8 mm tall and 6.2 mm deep. 0511461200 is housed in natural polybutylene terephthalate. This rectangle connector has an operating temperature of -40 to 85 °C.
