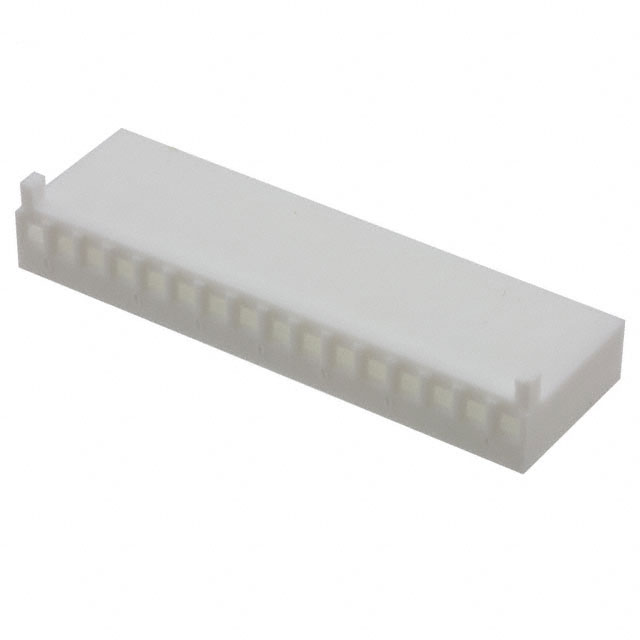

2.54毫米（ .100 ）间距KK®压接端子外壳，摩擦斜坡， 16电路，使用与4809 2.54mm .100 Pitch KK® Crimp Terminal Housing, Friction Ramp, 16 Circuits, Use with 4809
16 Rectangular Connectors - Housings Receptacle Natural 0.100" 2.54mm
得捷:
CONN RCPT HSG 16POS 2.54MM
艾睿:
Ensure a complete connection between two different circuit boards is made using Molex&s;s 0022012165 discrete wire housing. This F connector has 16 F contacts. It has a female type gender. It has a maximum voltage rating of 250 V. It has a straight body orientation. This is a 1-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 4 A/contact. Its wire is 22-28 AWG. 0022012165 is housed in white polyamide 6/6. This product is 41.1 mm long and 12.7 mm. This rectangle connector has an operating temperature of 0 to 75 °C.
Verical:
Conn Housing F 16 POS 2.54mm Crimp ST Cable Mount White KK® Bag
