0988221041

0988221041图片1
0988221041图片2

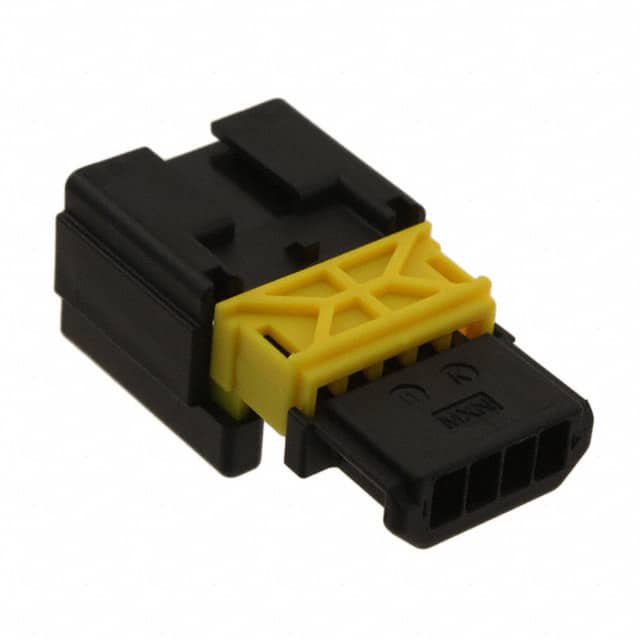

0988221041图片3
0988221041概述

Conn Housing M 4POS 3.33mm Crimp ST Cable Mount Automotive Carton

4 矩形连接器 - 外壳 插头 黑色 0.131"(3.33mm)


得捷:
CONN PLUG HSG 4POS 3.33MM


艾睿:
This 0988221041 discrete wire housing from Molex will house one or multiple wires and channels. This M connector has 4 M contacts. This is a 1-row connector. Its pitch is 3.33 mm. It has a male type gender. It has a straight body orientation. This device has a maximum current rating of 10 A/contact. 0988221041 is housed in black polybutylene terephthalate. This rectangle connector has an operating temperature of -40 to 85 °C. This product is 23.6 mm long, 16.3 mm tall and 41.1 mm deep.


Verical:
Conn Housing M 4 POS 3.33mm Crimp ST Cable Mount Automotive Carton


0988221041中文资料参数规格
技术参数

触点数 4

排数 1

针脚数 4

额定电流Max 10A/触头

工作温度Max 85 ℃

工作温度Min -40 ℃

外形尺寸

高度 41.1 mm

物理参数

外壳颜色 Black

颜色 Black

其他

产品生命周期 Unknown

包装方式 Carton

符合标准

RoHS标准 RoHS Compliant

含铅标准 无铅

海关信息

ECCN代码 EAR99

数据手册

在线购买0988221041
型号: 0988221041
制造商: Molex 莫仕
描述:Conn Housing M 4POS 3.33mm Crimp ST Cable Mount Automotive Carton
