05073273001概述

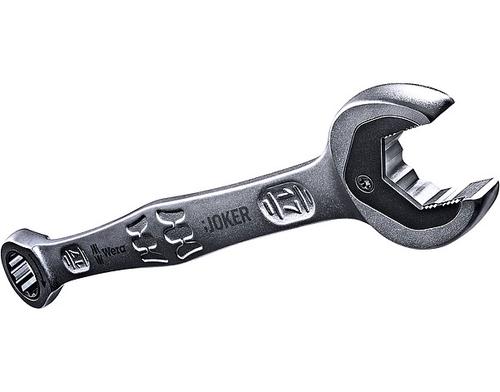

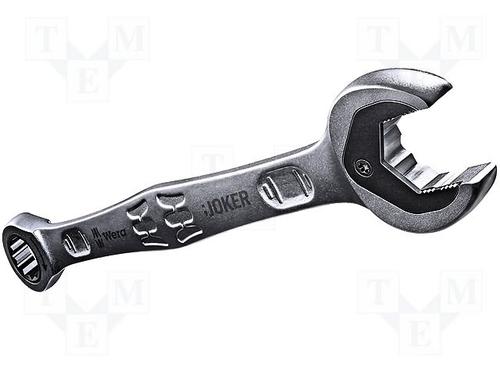

WERA  05073273001  扳手, 组合, 棘轮, 公制13 mm, 长度177 mm

High-quality combination ratchet wrench. Everything that a wrench has to be able to do. And a whole lot more. Faster, better, stylish. Yes, a real Joker. The new generation of combination ratchet wrenches. For hexagon headed bolts, screws, and nuts. Its unique holding function, thanks to the metal plate in the jaw, reduces the risk of dropping nuts and bolts. The replaceable metal plate in the jaw secures nuts and bolts with its extra hard teeth and reduces the danger of slipping. The integrated limit stop prevents any slipping around the bolt head and allows higher torque to be applied. The double-hex geometry provides a positive connection with nuts or bolts and reduces the risk of slipping. A return angle of only 30° at the open end avoids time consuming flipping of the wrench during fastening jobs. With ratchet mechanism at the ring end, with an exceptional, fine-tooth mechanism - 80 teeth in all - enables flexibility in very confined working spaces.

.
With holding function due to a metal plate in the jaw
.
Limit Stop enables secure grip on fasteners
.
Safer due to anti-slip effect
.
Small return angle of only 60°
.
Fine-tooth mechanism with 80 teeth
.
Ultra strong 80 tooth ratchet needs only 4.5° movement
05073273001中文资料参数规格
外形尺寸

长度 177 mm

符合标准

RoHS标准 Non-Compliant

REACH SVHC标准 No SVHC

REACH SVHC版本 2014/06/16

数据手册

在线购买05073273001
型号: 05073273001
制造商: WERA 德国维拉
描述:WERA  05073273001  扳手, 组合, 棘轮, 公制13 mm, 长度177 mm
替代型号05073273001
型号/品牌 代替类型 替代型号对比

05073273001

WERA 德国维拉

当前型号

当前型号

467.13

Facom

功能相似

05073273001和467.13的区别
