0875681273

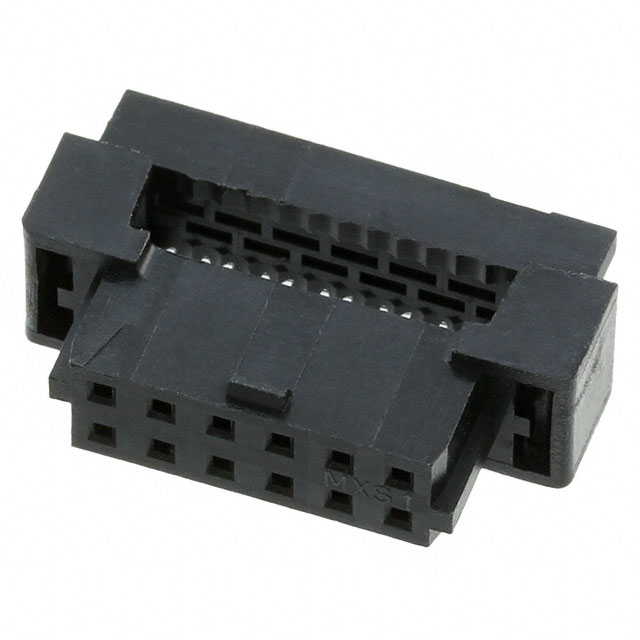

2.00毫米（ .079 “ ）间距的Milli-电网™线对板插座，双排， IDT ，无铅， 12电路， 0.38毫米（ 0.015 ”），金（Au ）选择性电镀 2.00mm .079" Pitch Milli-Grid™ Cable-to-Board Receptacle, Dual Row, IDT, Lead-free, 12 Circuits, 0.38mm .015" Gold Au Selective Plating

12 Position Rectangular Receptacle Connector IDC Gold 28 AWG

得捷:
CONN RCPT 12POS IDC 28AWG GOLD

贸泽:
Headers & Wire Housings 2.00MM REC 02X06P W/LOCK RAMP

艾睿:
Easily mount this idc connector 0875681273 header connector from Molex onto your PCB project to support a variety of physical configuration options. This RCP connector&s;s 12 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 2 mm. It has a receptacle type gender. This is a 2-row connector. It has a right angle body orientation. It has a maximum voltage rating of 125 V. This device has a maximum current rating of 1 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. 0875681273 is housed in black glass filled polybutylene terephthalate. This product is 18.65 mm long, 11.4 mm tall and 5.87 mm deep. It uses the idt termination method. This connector has an operating temperature of -20 to 85 °C.

安富利:
Conn IDC Connector RCP 12 POS 2mm IDT RA Cable Mount Tray
