1.27毫米（ .050 “ ）间距QF- 50 ，单梁，垂直MIL / DIN版本， 0.76um （ 30” ），金（Au ） ， 26电路 1.27mm .050" Pitch QF-50, Single Beam, Vertical MIL/DIN Version, 0.76um 30" Gold Au, 26 Circuits

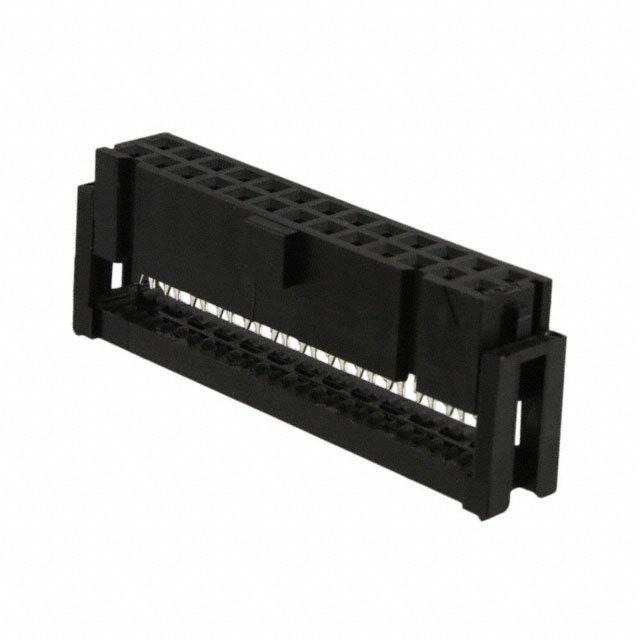

26 Position Rectangular Receptacle Connector IDC Gold 26-28 AWG
得捷:
CONN RCPT 26P IDC 26-28AWG GOLD
艾睿:
Look no further than the idc connector 0906351262 header connector from Molex, a great tool to use when board-to-board interconnects is required. This RCP connector&s;s 26 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a right angle body orientation. It has a receptacle type gender. This is a 2-row connector. It has a maximum voltage rating of 250 VDC|250VAC. This device has a maximum current rating of 1 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This connector has an operating temperature of -25 to 85 °C. 0906351262 is housed in black polyester. It uses the idt termination method. This product is 37.62 mm long, 15.2 mm tall and 7.1 mm deep.
安富利:
Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Tray
