0875681073

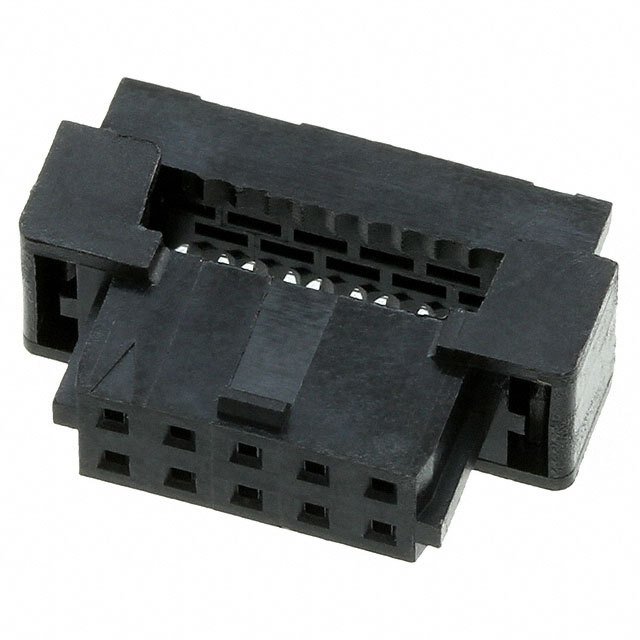

2.00毫米（ .079 “ ）间距的Milli-网格线对板插座，双排， IDT ，无铅， 10电路 2.00mm .079" Pitch Milli-Grid Cable-to-Board Receptacle, Dual Row, IDT, Lead-free, 10 Circuits

10 位置矩形连 插座 IDC 镀金 28AWG

得捷:
CONN RCPT 10POS IDC 28AWG GOLD

贸泽:
Headers & Wire Housings 2.00MM REC 02X05P W/LOCK RAMP

艾睿:
Support physical configuration options for jumper posts by mounting this idc connector 0875681073 header connector from Molex. This RCP connector&s;s 10 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 125 V. It has a receptacle type gender. Its pitch is 2 mm. It has a right angle body orientation. This is a 2-row connector. This device has a maximum current rating of 1 A/contact. This component will be shipped in tray format. This product is 16.65 mm long, 11.4 mm tall and 5.87 mm deep. It uses the idt termination method. 0875681073 is housed in black glass filled polybutylene terephthalate. This connector has an operating temperature of -20 to 85 °C.

安富利:
Conn IDC Connector RCP 10 POS 2mm IDT RA Cable Mount Tray

Chip1Stop:
Conn IDC Connector RCP 10 POS 2mm IDT RA Cable Mount Tray

Verical:
Conn IDC Connector RCP 10 POS 2mm IDT RA Cable Mount Milli-Grid™ Tray
