09185166813

xxxxxxxx**803** 结尾的 Harting 部件号没有应力消除夹 以 xxxxxxxx**813** 结尾的 Harting 部件号有应力消除夹 ### 针座和插座（IDC 终端）

凸缘极化插座

一系列凸缘极化插座，带有开口端盖，带或不带应力消除：

.

*803** 结尾的 Harting 部件号没有应力消除夹

.

*813** 结尾的 Harting 部件号有应力消除夹

### 认可

UL: E102079; CSA: 98267; IEC 603-13; DIN EN 60603-13; MIL-C 83503; D 2632; BT 224; NFC 93-428 HE 10

### 标准

IDC; BT224; DIN41651; DIN EN 60603-13

### 针座和插座（IDC 终端）

得捷:
CONN RCPT 16POS IDC 26-28AWG

欧时:
Harting SEK-18 系列 2行 16路 2.54mm节距 直角 母 IDC 连接器 09185166813, 电缆安装

艾睿:
As an added safety precaution, the idc connector 09-18-516-6813 header connector from Harting will prevent and protect components on your circuit board from accidentally touching each other. This F connector has 16 F contacts. This is a 2-row connector. Its pitch is 2.54 mm. It has a right angle body orientation. It has a female type gender. This product is 24.9 mm long, 14.5 mm tall and 7.2 mm deep. It uses the idt termination method.

Allied Electronics:
16 way bump skt w/strain relief, 1A

TME:

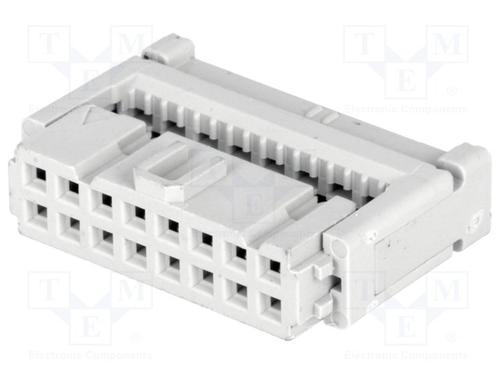

Plug; IDC; female; PIN:16; with cable clamp; IDC; for ribbon cable

Verical:
Conn IDC Connector RCP 16 POS 2.54mm IDT RA Side Entry Cable Mount
