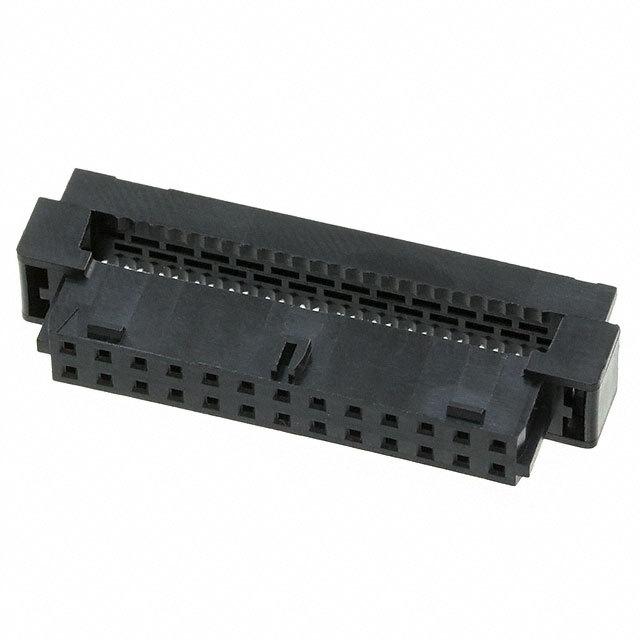

0875682693

2.00毫米（ .079 “ ）间距的Milli-电网™线对板插座，双排， IDT ，无铅， 26电路， 0.38毫米（ 0.015 ”），金（Au ）选择性电镀，与中心极化 2.00mm .079" Pitch Milli-Grid™ Cable-to-Board Receptacle, Dual Row, IDT, Leadfree,26 Circuits, 0.38mm .015" Gold Au Selective Plating, with Center Polarization

26 位置矩形连 插座 IDC 镀金 28AWG

得捷:
CONN RCPT 26POS IDC 28AWG GOLD

贸泽:
Headers & Wire Housings MGrid IDT Rec W/PolKeyLRmp .38AuLF 26Ckt

艾睿:
Use this idc connector 0875682693 connector from Molex when board-to-board interconnects is required. This RCP connector&s;s 26 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 125 V. It has a receptacle type gender. Its pitch is 2 mm. It has a right angle body orientation. This is a 2-row connector. This device has a maximum current rating of 1 A/contact. The item will be shipped in tray orientation. This product is 32.65 mm long, 11.4 mm tall and 5.87 mm deep. This connector has an operating temperature of -20 to 85 °C. 0875682693 is housed in black glass filled polybutylene terephthalate. It uses the idt termination method.

安富利:
Conn IDC Connector RCP 26 POS 2mm IDT RA Cable Mount Tray
