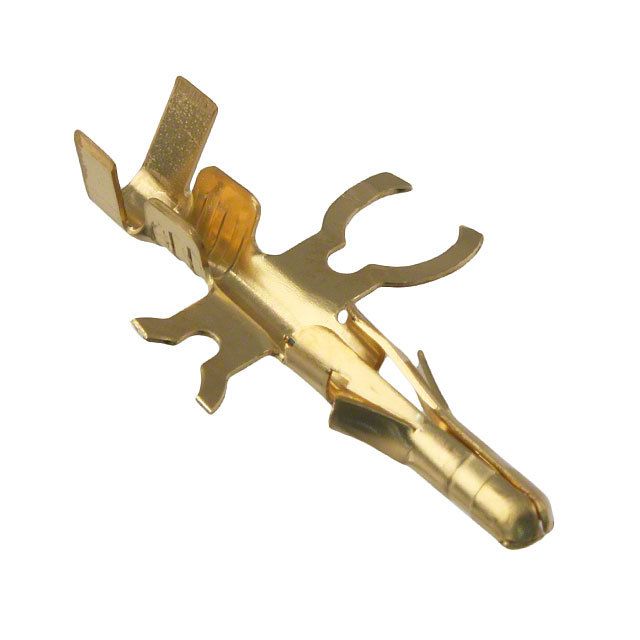

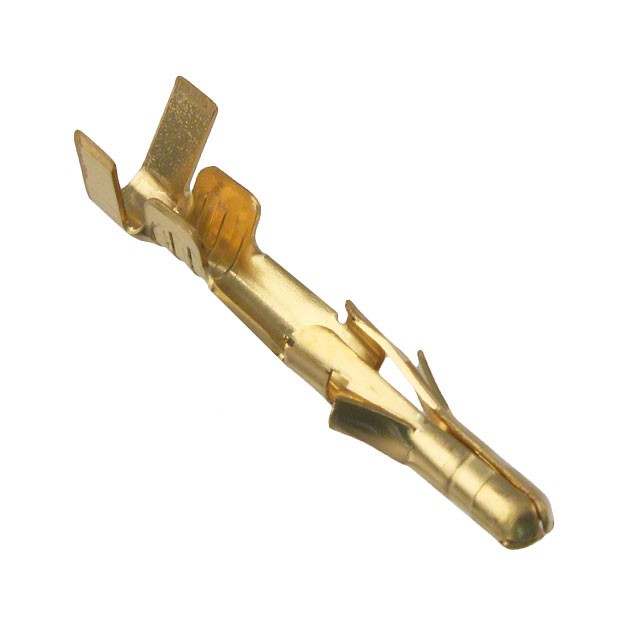

2.36毫米( .093 “ )直径,标准.093 ”引脚和插口压接端子, 1190系列,男性,金(Au )镀黄铜触点, 14-20 AWG ,卷 2.36mm .093" Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Gold Au Plated Brass Contact, 14-20 AWG, Reel
Pin Contact Gold 14-20 AWG Crimp
得捷:
CONN PIN 14-20AWG CRIMP GOLD
艾睿:
Never worry about a loose connection again with this 0002096100 connector contact from Molex. It has a straight body orientation. This device has a maximum current rating of 17 A. This has a Connector Headers and PCB Receptacles connector. This product is 19.81 mm long, 4.38 mm tall and 5.33 mm deep. It uses the crimp termination method. This connector contact has an operating temperature range of -40 °C to 105 °C. Its wire is 14-20 AWG.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0002096100 Molex 莫仕 | 当前型号 | 当前型号 |
02-09-6106 莫仕 | 完全替代 | 0002096100和02-09-6106的区别 |
