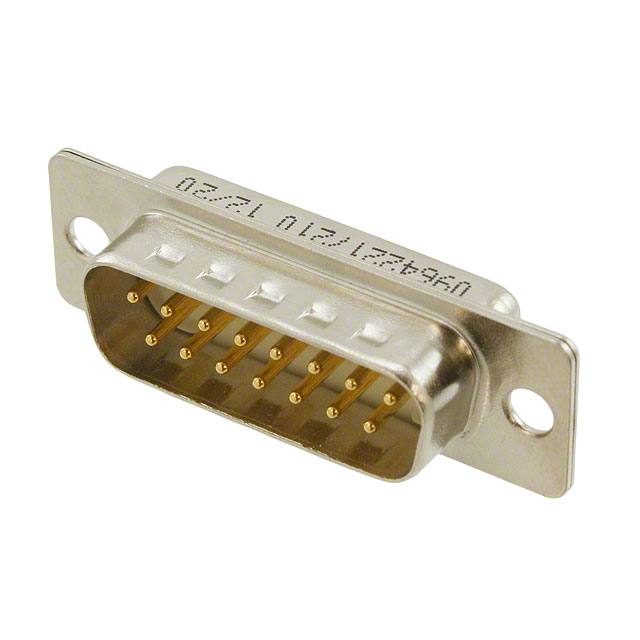

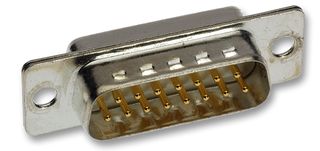

HARTING 09642217210 滤波连接器, D-SUB, D-Sub Filter系列, DA, 插头, 15 触点, 47 pF, 钢主体
15 位 D-Sub 插头，公引脚
得捷:
CONN D-SUB PLUG 15POS SLDR CUP
贸泽:
D-Sub Standard Connectors 15P MALE SOLDER CUP 47 pf THRU HOLE
e络盟:
D-Sub 连接器, 过滤式, 插头, D-Sub Filter系列, 15 触点, DA, 焊接杯
艾睿:
Be sure to set up proper communication between your serial connections with the 09642217210 DVI connector from Harting. It has a maximum voltage rating of 100 V. This 2-row connector has a single port. This male connector has 15 male contacts. It has a straight body orientation. 09642217210 is housed in polychlorinated terphenyl. This device has a maximum current rating of 7.5 A. This product is 39.1 mm long, 12.5 mm tall and 14.3 mm deep. Its 15 terminals use the solder cup termination method.
Newark:
# HARTING 09642217210 Filtered D Sub Connector, D-Sub Filter Series, DA, Plug, 15, 47 pF, Steel Body
触点数 15
极性 Male
线规 20 AWG
额定电流 7.5 A
绝缘电阻 1000 MΩ
电容 47 pF
排数 2
易燃性等级 UL 94 V-0
针脚数 15
接触电阻 10.0 mΩ
拔插次数 500
额定电流Max 7.5 A
额定电压Max 100 V
额定电压 100 V
接触电阻Max 10 mΩ
安装方式 Solder
高度 12.5 mm
颜色 Natural
触点材质 Copper Alloy
材质 Steel
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Computers & Computer Peripherals, 工业, Industrial, 计算机和计算机周边, 通信与网络, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
