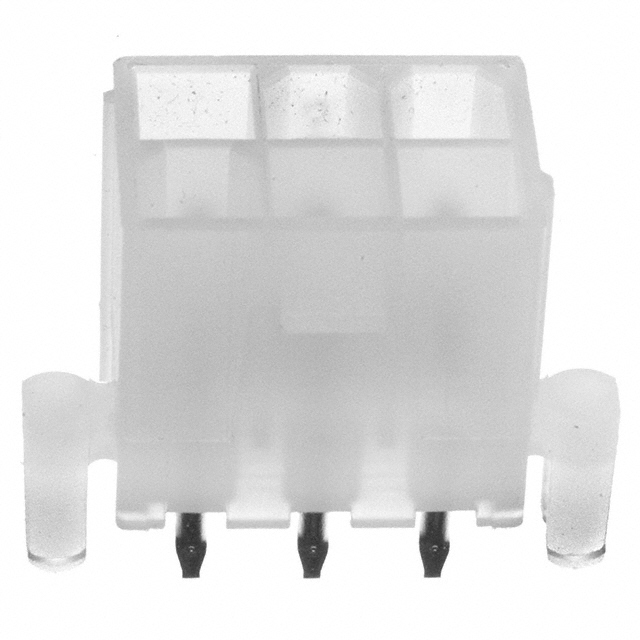

4.20毫米（ .165 “ ）间距迷你小飞度™插头，双排，垂直，以管理单元塑料栓锁电路板，电路6 ，PA聚酰胺尼龙6/6 ， UL 94V - 2 ，锡（Sn ）过镍（Ni ）镀层，具有排水孔 4.20mm .165" Pitch Mini-Fit Jr.™ Header, Dual Row, Vertical, with Snap-in Plastic Peg PCB Lock, 6 Circuits, PA Polyamide Nylon 6/6, UL 94V-2, Tin Sn Over Nickel Ni Plating, with Drain Holes
Connector Header Through Hole 6 position 0.165" 4.20mm
得捷:
CONN HEADER VERT 6POS 4.2MM
贸泽:
Molex MINI-FIT JR HDR 02X03P VT SN
艾睿:
The 0039306067 power connector from Molex is perfect for powering your circuit because it comes with the least amount of losses. This HDR connector&s;s 6 contacts that are made out of brass and plated with tin over nickel. This connector has a single port. It has a maximum voltage rating of 600 V. Its pitch is 4.2 mm. It has a straight body orientation. It has a header type gender. 0039306067 is housed in nylon 6/6. This device has a maximum current rating of 9 A/contact. This component will be shipped in tray format. Its 6 terminals use the solder termination method. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product is 12.8 mm tall.
安富利:
Conn Wire to Board HDR 6 POS 4.2mm Solder ST Thru-Hole Tray
