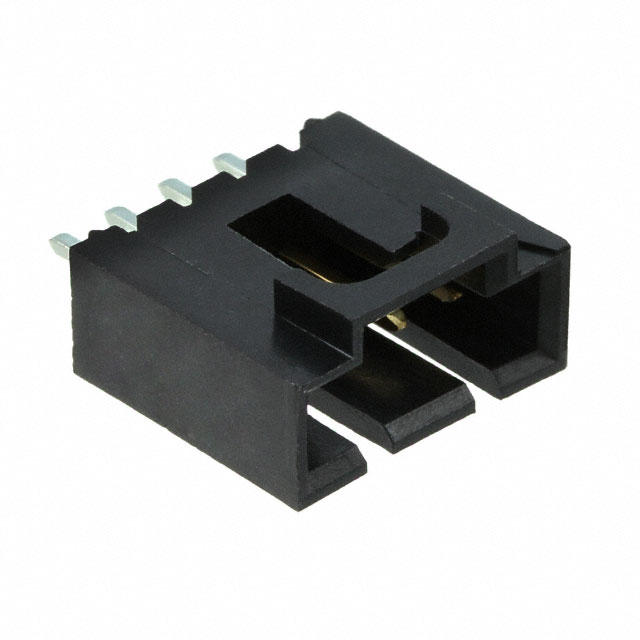

2.54毫米（ .100“ ）间距SL ™头，单列，立式， 0.120 ”口袋，带罩， 4Circuits ， 0.76μm （ 30μ “），金（Au ）选择性电镀，锡（Sn ） PC端脚镀层 2.54mm .100" Pitch SL™ Header, Single Row, Vertical, .120" Pocket, Shrouded, 4Circuits, 0.76μm 30μ" Gold Au Selective Plating, Tin Sn PC Tail Plating
针座 通孔 4 位置 0.100"（2.54mm）
得捷:
CONN HEADER VERT 4POS 2.54MM
艾睿:
Use this shrouded 0705430108 header connector from Molex where IDC ribbon cables are used. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a header type gender. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 250 V. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 12.71 mm long, 11.81 mm tall and 6.6 mm deep. 0705430108 is housed in black polyester. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C.
Chip1Stop:
Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole SL邃｢ Tube
Verical:
Conn Shrouded Header 4 Sides HDR 4 POS 2.54mm Solder ST Top Entry Thru-Hole SL™ Tube
