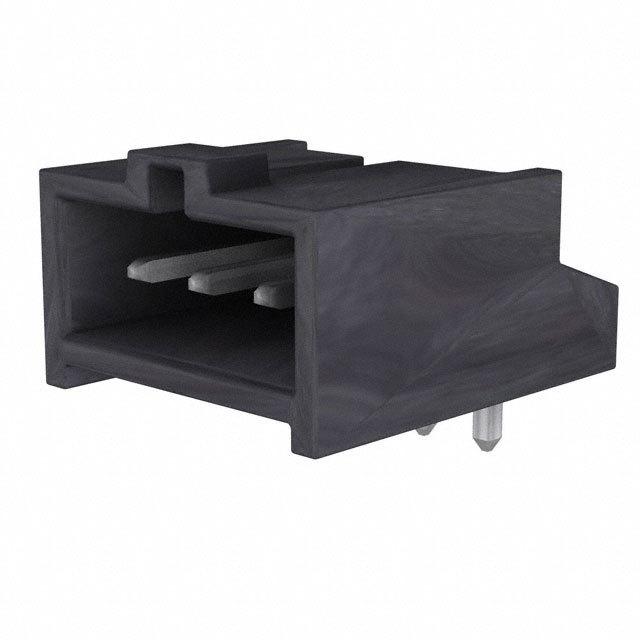

2.54毫米（ .100 ）间距C-电网III ™头，单排，直角，带罩， 3电路，为4μm （ 160μ ）锡/铅（Sn ）在镍（Ni ） 2.54mm .100 Pitch C-Grid III™ Header, Single Row, Right Angle, Shrouded, 3 Circuits, 4μm 160μ Tin/Lead Sn over Nickel Ni
Connector Header Through Hole, Right Angle 3 position 0.100" 2.54mm
得捷:
CONN HEADER R/A 3POS 2.54MM
艾睿:
Look no further than the shrouded 0901362103 header connector from Molex, a great tool to use when board-to-board interconnects is required. This HDR connector&s;s 3 contacts that are made out of brass and plated with tin over nickel. It has a header type gender. It has a right angle body orientation. It has a maximum voltage rating of 350 VDC|350VAC. Its pitch is 2.54 mm. This is a 1-row connector. This device has a maximum current rating of 3 A/contact. This component will be shipped in tray format. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. 0901362103 is housed in black polyester. This product is 10.97 mm long, 7.21 mm tall and 10.9 mm deep.
安富利:
Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tray
Chip1Stop:
Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tray
Verical:
Conn Shrouded Header 4 Sides HDR 3 POS 2.54mm Solder RA Thru-Hole C-Grid III™ Tray
