0874270602

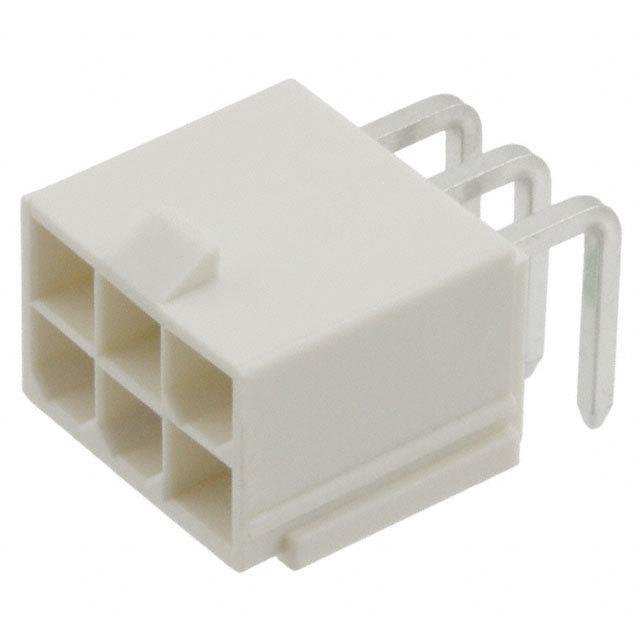

4.20毫米（ 0.165 “ ）的Mini-适合小头，直角，耐高温，无法兰， 6电路 4.20mm .165" Mini-Fit Jr. Header, Right Angle, High Temperature, without Flange, 6 Circuits

针座 通孔，直角 6 位置 0.165"（4.20mm）

得捷:
CONN HEADER R/A 6POS 4.2MM

贸泽:
Headers & Wire Housings MINI-FIT JR HDR 06P RA SN

艾睿:
Harsh and stressful environments are no match for this robust 0874270602 power connector from Molex. This HDR connector&s;s 6 contacts that are made out of brass and plated with tin over nickel. It has a right angle body orientation. It has a maximum voltage rating of 600 V. Its pitch is 4.2 mm. This connector has a single port. It has a header type gender. 0874270602 is housed in nylon 4/6. This device has a maximum current rating of 13 A/contact. This component will be shipped in tray format. This product is 15 mm long, 11.4 mm tall and 19.4 mm deep. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. Its 6 terminals use the solder termination method.

Verical:
Conn Power HDR 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Mini-Fit Jr™ Tray
