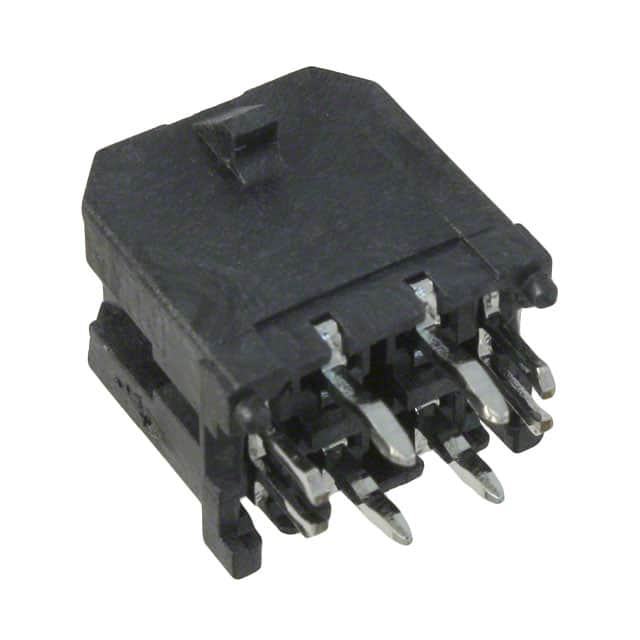

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面安装，双排，垂直，用压入金属固定夹， 4个电路 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Dual Row, Vertical, with Press-fit Metal Retention Clip, 4 Circuits
Connector Header Through Hole 4 position 0.118" 3.00mm
得捷:
CONN HEADER VERT 4POS 3MM
艾睿:
Harsh and stressful environments are no match for this robust 0430450424 power connector from Molex. This HDR connector&s;s 4 contacts that are made out of brass alloy and plated with tin over nickel. It has a header type gender. It has a straight body orientation. This connector has a single port. Its pitch is 3 mm. It has a maximum voltage rating of 600 V. 0430450424 is housed in liquid crystal polymer. This device has a maximum current rating of 5 A/contact. The component will be shipped in tray format. This power connector has an operating temperature range of -40 °C to 105 °C. Its 4 terminals use the solder termination method. This product is 10.15 mm long, 9.91 mm tall and 8.77 mm deep.
安富利:
Conn Wire to Board HDR 4 POS 3mm Solder ST Thru-Hole Tray
Verical:
Conn Shrouded Header HDR 4 POS 3mm Solder ST Top Entry Thru-Hole Micro-Fit 3.0 Tray
