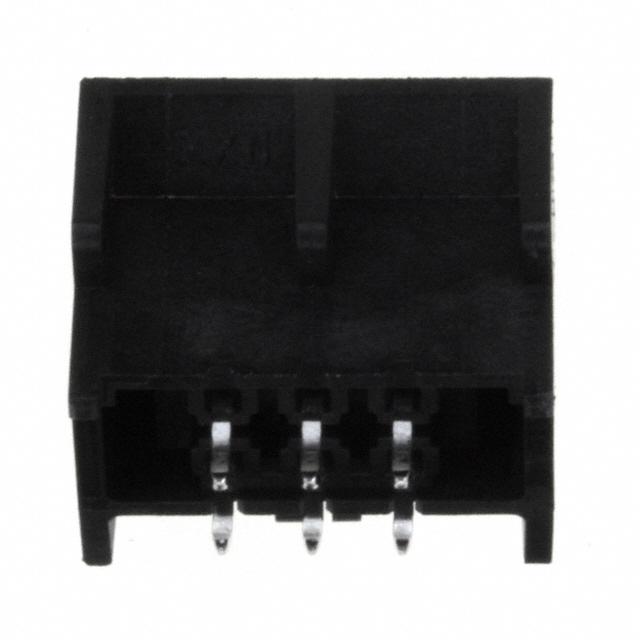

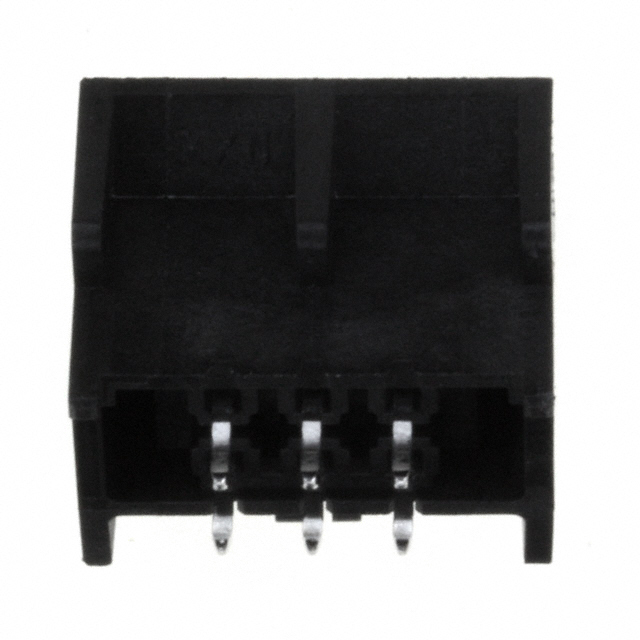

3.00毫米（ 0.118 “ ）间距微飞度3.0 BMI ™接头，表面安装，双排，垂直，与PCB偏光PEG， 6电路，锡（Sn ）镀层 3.00mm .118" Pitch Micro-Fit 3.0 BMI™ Header, Surface Mount Compatible, Dual Row, Vertical, with PCB Polarizing Peg, 6 Circuits, Tin Sn Plating
针座 通孔 6 位置 0.118"（3.00mm）
得捷:
CONN HEADER VERT 6POS 3MM
艾睿:
Make strong and binding connections on your circuit boards by adopting this wire to board 0444320601 connector from Molex. This HDR connector&s;s 6 contacts that are made out of brass alloy and plated with tin over nickel. It has a straight body orientation. Its pitch is 3 mm. This is a 2-row connector. It has a header type gender. It has a maximum voltage rating of 250 VDC|250VAC. This device has a maximum current rating of 5 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 16 mm long, 11.6 mm tall and 11.9 mm deep. 0444320601 is housed in black glass filled nylon. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C.
Verical:
Conn HDR 6 POS 3mm Solder ST Thru-Hole 6 Terminal 1 Port Tray
