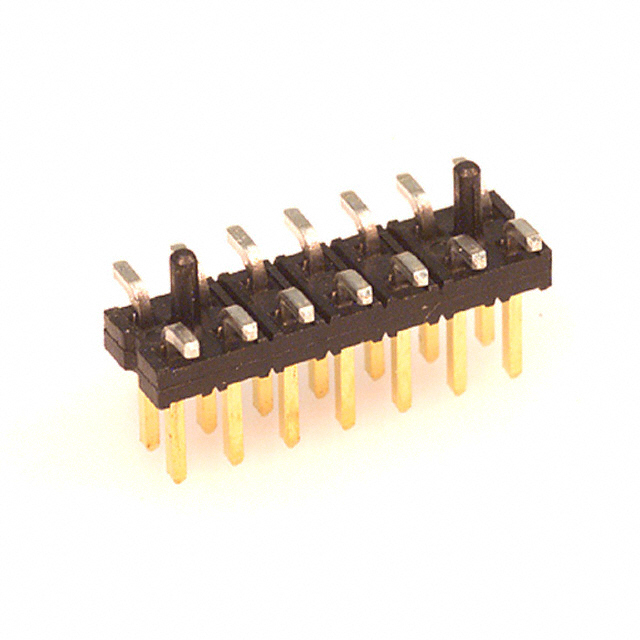

2.00毫米（ 0.079 ）间距的Milli-电网™接头，表面贴装，立式， 14电路， 0.38μm （ 15μ ），金（Au ）选择性电镀，用压接塑料钉，无铅 2.00mm .079 Pitch Milli-Grid™ Header, Surface Mount, Vertical, 14 Circuits, 0.38μm 15μ Gold Au Selective Plating, with Press-fit Plastic Pegs, Lead-free
针座 表面贴装型 14 位置 0.079"（2.00mm）
得捷:
CONN HEADER SMD 14POS 2MM
贸泽:
Headers & Wire Housings 2.00MM HDR 02X07P VT SMT 15AU
艾睿:
Support physical configuration options for jumper posts by mounting this unshrouded 0877591450 header connector from Molex. This HDR connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. This is a 2-row connector. It has a header type gender. It has a maximum voltage rating of 125 V. Its pitch is 2 mm. This device has a maximum current rating of 2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. 0877591450 is housed in black high temperature thermoplastic. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 13.9 mm long, 6.5 mm tall and 4 mm deep.
Chip1Stop:
Conn Unshrouded Header HDR 14 POS 2mm Solder ST SMD Tube
