0430451009

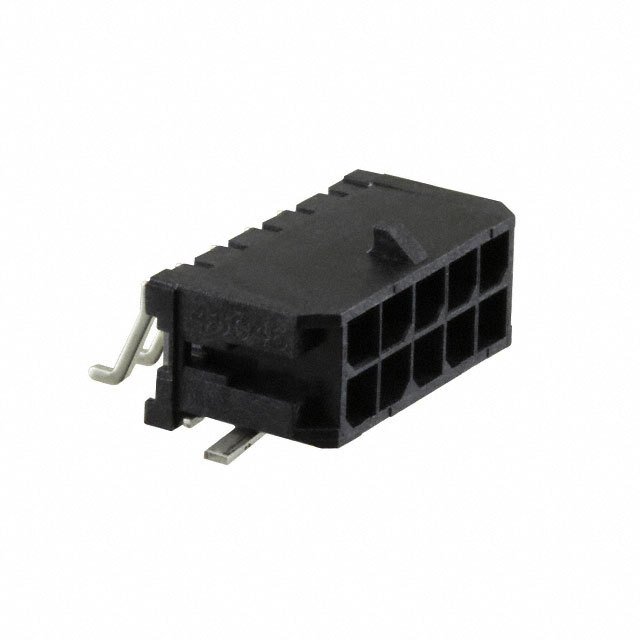

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面贴装，双排，直角，用焊片，电路10 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount, Dual Row, Right Angle, with Solder Tab, 10 Circuits

针座 表面贴装，直角 10 位置 0.118"（3.00mm）

得捷:
CONN HEADER SMD R/A 10POS 3MM

艾睿:
Reduce safety concerns with this wire to board 0430451009 header connector from Molex which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 10 contacts that are made out of brass alloy and plated with tin over nickel. It has a header type gender. It has a right angle body orientation. This is a 2-row connector. Its pitch is 3 mm. It has a maximum voltage rating of 600 V. This device has a maximum current rating of 5 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. 0430451009 is housed in black liquid crystal polymer. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C. This product is 19.15 mm long, 8.77 mm tall and 15.4 mm deep.

安富利:
Conn Wire to Board HDR 10 POS 3mm Solder RA SMD T/R

Chip1Stop:
Conn Wire to Board HDR 10 POS 3mm Solder RA SMD T/R

Verical:
PCB Connector HDR 10 POS 3mm Solder RA SMD 10 Terminal 1 Port
