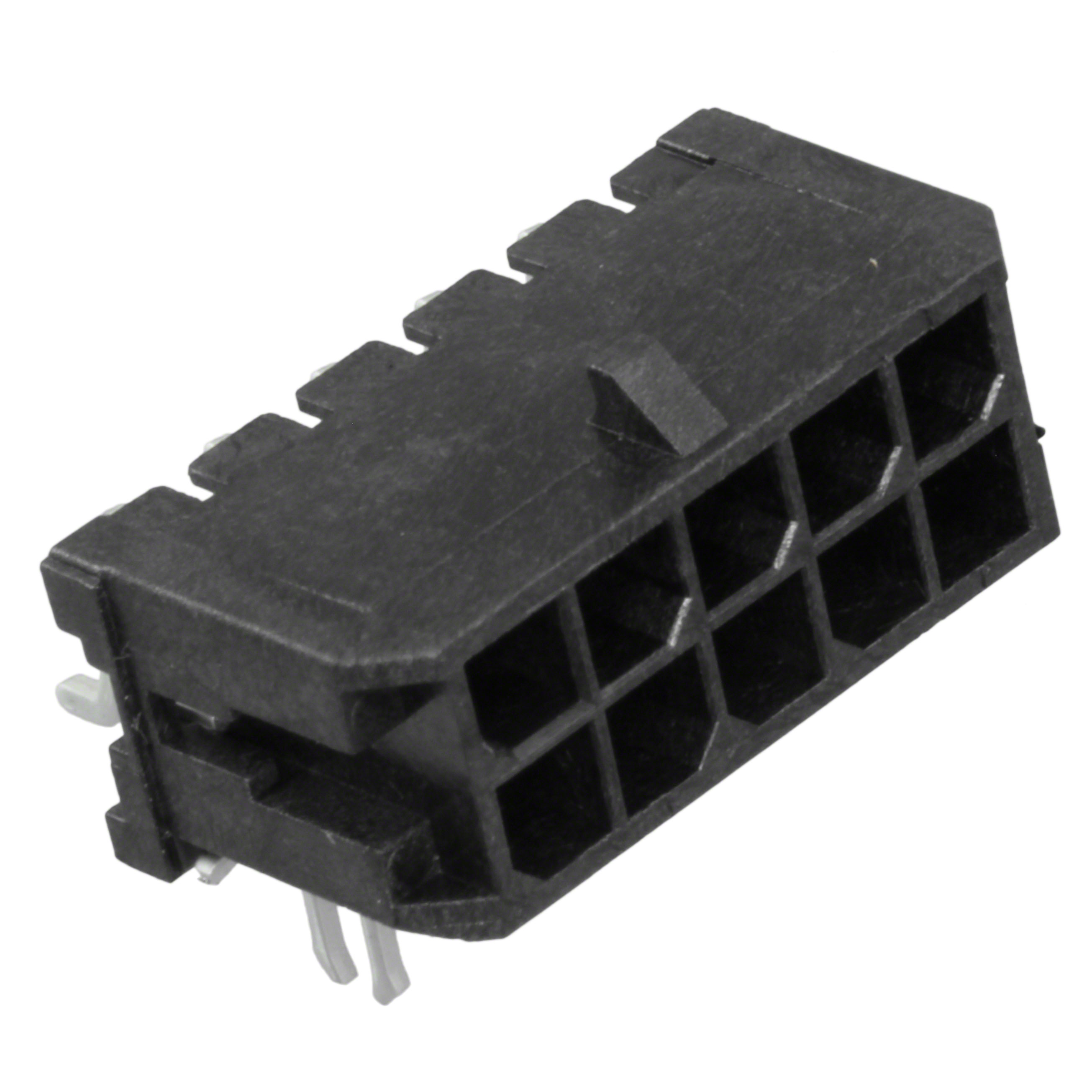

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面贴装，双排，直角，带压入金属固定夹， 10电路， 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount, Dual Row, Right Angle, with Press-fit Metal Retention Clip, 10 Circuits,
Connector Header Surface Mount, Right Angle 10 position 0.118" 3.00mm
得捷:
CONN HEADER SMD R/A 10POS 3MM
艾睿:
This wire to board 0430451007 header connector from Molex reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 10 contacts that are made out of brass alloy and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 600 V. Its pitch is 3 mm. It has a right angle body orientation. This is a 2-row connector. This device has a maximum current rating of 5 A/contact. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C. 0430451007 is housed in black liquid crystal polymer. This product is 19.15 mm long, 8.77 mm tall and 15.4 mm deep.
安富利:
Conn Wire to Board HDR 10 POS 3mm Solder RA SMD T/R
