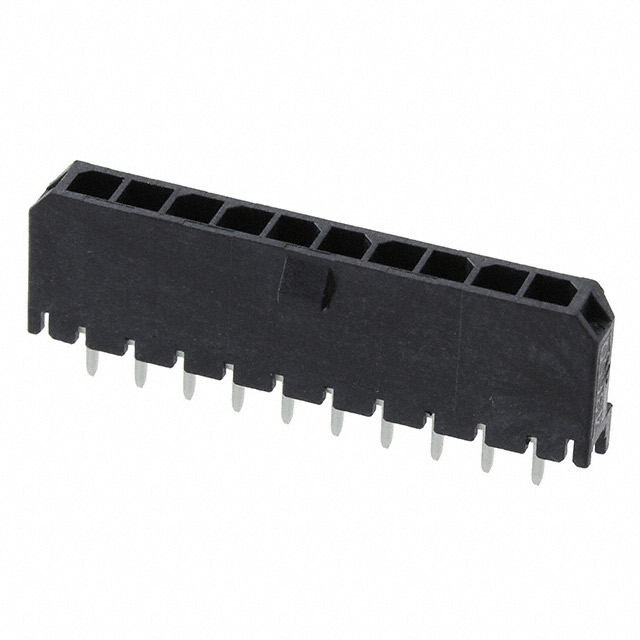

3.00毫米（ 0.118 “ ）间距微飞度3.0头，表面贴装兼容，单列，立式，与PCB偏光钉 3.00mm .118" Pitch Micro-Fit 3.0 Header, Surface Mount Compatible, Single Row, Vertical, with PCB Polarizing Peg
Connector Header Through Hole 10 position 0.118" 3.00mm
得捷:
CONN HEADER VERT 10POS 3MM
艾睿:
The best way to get minimal losses of power in your circuit is by operating it with the 0436501029 power connector from Molex. This HDR connector&s;s 10 contacts that are made out of brass and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 600 V. It has a straight body orientation. Its pitch is 3 mm. This connector has a single port. 0436501029 is housed in liquid crystal polymer. This device has a maximum current rating of 5 A/contact. The component will be shipped in tray format. Its 10 terminals use the solder termination method. This product is 33.66 mm long, 9.9 mm tall and 5.57 mm deep. This power connector has an operating temperature range of -40 °C to 105 °C.
