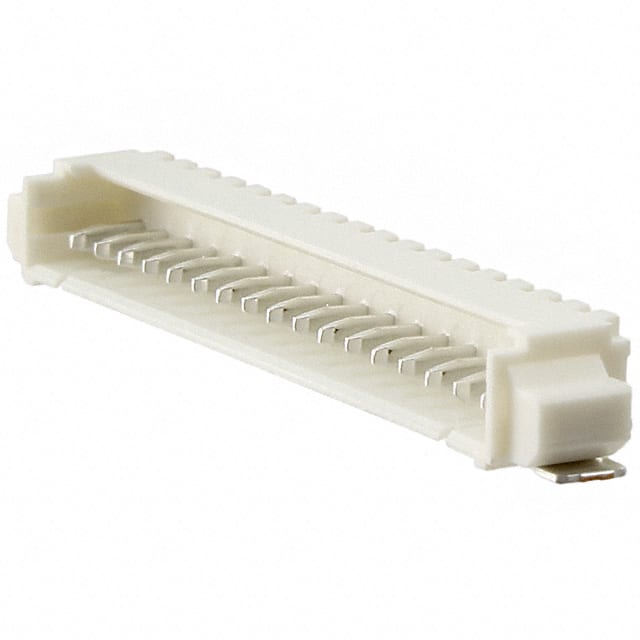

1.25毫米( .049 “ )间距PicoBlade ™接头,表面贴装,直角,无铅, 17电路 1.25mm .049" Pitch PicoBlade™ Header, Surface Mount, Right Angle, Lead-free, 17 Circuits
Connector Header Surface Mount, Right Angle 17 position 0.049" 1.25mm
得捷:
CONN HEADER SMD R/A 17POS 1.25MM
艾睿:
Mount this shrouded 0532611771 header connector from Molex on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 17 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a header type gender. It has a maximum voltage rating of 125 V. It has a right angle body orientation. This is a 1-row connector. Its pitch is 1.25 mm. This device has a maximum current rating of 1 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 26.4 mm long, 3.4 mm tall and 5.2 mm deep. This connector has an operating temperature of -40 to 85 °C. 0532611771 is housed in natural nylon 4/6. It uses the solder termination method.
Verical:
Conn Shrouded Header 4 Sides HDR 17 POS 1.25mm Solder RA SMD PicoBlade™ T/R
