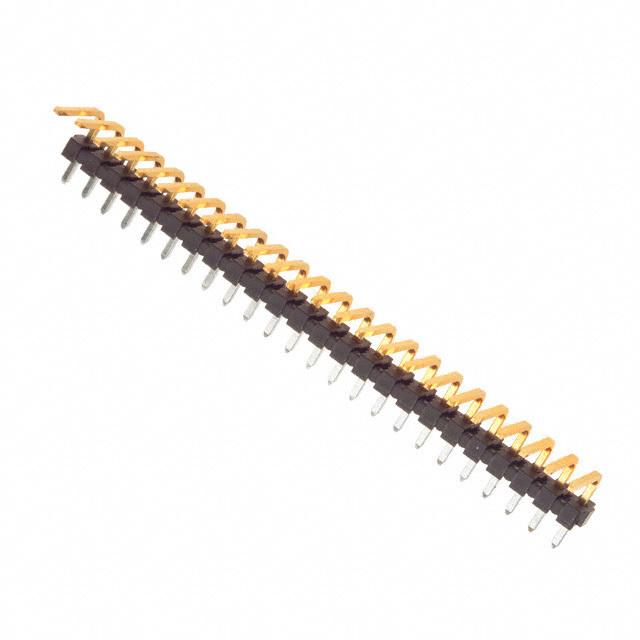

3.96毫米( .156 “ )间距KK®头,分离式,直角, 24电路,金(Au )镀层 3.96mm .156" Pitch KK® Header, Breakaway, Right Angle, 24 Circuits, Gold Au Plating
Connector Header Through Hole, Right Angle 24 position 0.156" 3.96mm
得捷:
CONN HEADER R/A 24POS 3.96MM
艾睿:
Protect your printed circuit boards from accidental damages with Molex&s;s unshrouded 0026482242 header connector. This HDR connector&s;s 24 contacts that are made out of brass and plated with gold. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. This is a 1-row connector. It has a header type gender. Its pitch is 3.96 mm. This device has a maximum current rating of 7 A/contact. This product is 93.85 mm long, 8.2 mm tall and 18.42 mm deep. This connector has an operating temperature of -40 to 80 °C. 0026482242 is housed in black polyester. It uses the solder termination method.
