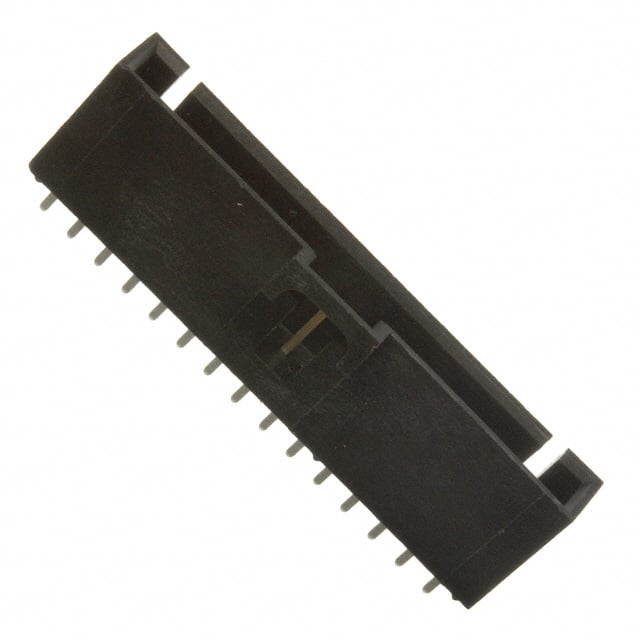

2.54毫米（ .100“ ）间距SL ™头，单列，立式， 0.120 ”口袋，带罩， 15Circuits ， 0.38μm （ 15μ “），金（Au ）选择性电镀，锡（Sn ） PC端脚镀层 2.54mm .100" Pitch SL™ Header, Single Row, Vertical, .120" Pocket, Shrouded, 15Circuits, 0.38μm 15μ" Gold Au Selective Plating, Tin Sn PC Tail Plating
针座 通孔 15 位置 0.100"（2.54mm）
得捷:
CONN HEADER VERT 15POS 2.54MM
贸泽:
Headers & Wire Housings SL 2.54MM HDR VT TH SHRD 1X15P
艾睿:
Protect your printed circuit boards from accidental damages with Molex&s;s shrouded 0705430014 header connector. This HDR connector&s;s 15 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 2.54 mm. It has a straight body orientation. It has a maximum voltage rating of 250 V. This is a 1-row connector. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. This product is 40.65 mm long, 11.81 mm tall and 6.6 mm deep. 0705430014 is housed in black polyester. This connector has an operating temperature of -40 to 105 °C.
Verical:
Conn Shrouded Header 4 Sides HDR 15 POS 2.54mm Solder ST Thru-Hole SL™ Tube
