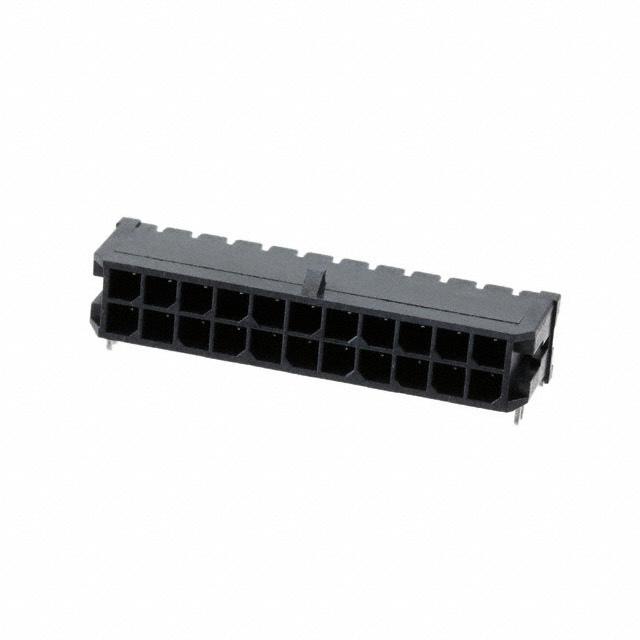

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面贴装，双排，直角，带压入金属固定夹， 22电路 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount, Dual Row, Right Angle, with Press-fit Metal Retention Clip, 22 Circuits
针座 表面贴装，直角 22 位置 0.118"（3.00mm）
得捷:
CONN HEADER SMD R/A 22POS 3MM
艾睿:
Safety is an important concern when designing electronic devices. Molex&s;s wire to board 0430452206 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 22 contacts that are made out of brass alloy and plated with tin over nickel. This is a 2-row connector. It has a right angle body orientation. It has a maximum voltage rating of 600 V. Its pitch is 3 mm. It has a header type gender. This device has a maximum current rating of 5 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 37.15 mm long, 8.77 mm tall and 15.4 mm deep. 0430452206 is housed in black liquid crystal polymer. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method.
