0039296128

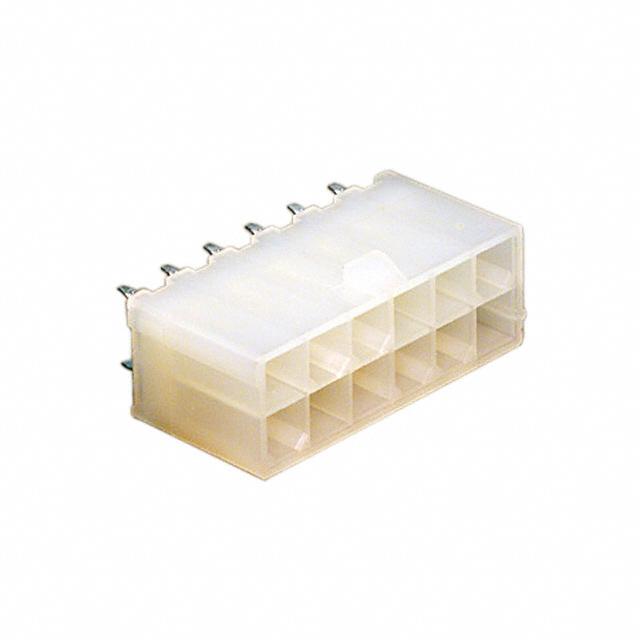

4.20毫米（ .165 “ ）间距迷你适合小头，双排，垂直，无管理单元塑料钉板锁 4.20mm .165" Pitch Mini-Fit Jr. Header, Dual Row, Vertical, without Snap-in Plastic Peg PCB Lock

Connector Header Through Hole 12 position 0.165" 4.20mm

得捷:
CONN HEADER VERT 12POS 4.2MM

贸泽:
Headers & Wire Housings MINI-FIT JR HDR 12P 94V-0 30AU

艾睿:
There won&s;t be any energy loss when you power up your circuit using the 0039296128 power connector from Molex. This HDR connector&s;s 12 contacts that are made out of brass and plated with gold over nickel. It has a maximum voltage rating of 600 V. This connector has a single port. Its pitch is 4.2 mm. It has a straight body orientation. It has a header type gender. 0039296128 is housed in nylon 6/6. This device has a maximum current rating of 9 A/contact. Its 12 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 105 °C. This product is 26.8 mm long, 12.8 mm tall and 11 mm deep.

安富利:
Conn Wire to Board HDR 12 POS 4.2mm Solder ST Thru-Hole

Verical:
Conn Wire to Board HDR 12Power POS 4.2mm Solder ST Top Entry Thru-Hole Bag
