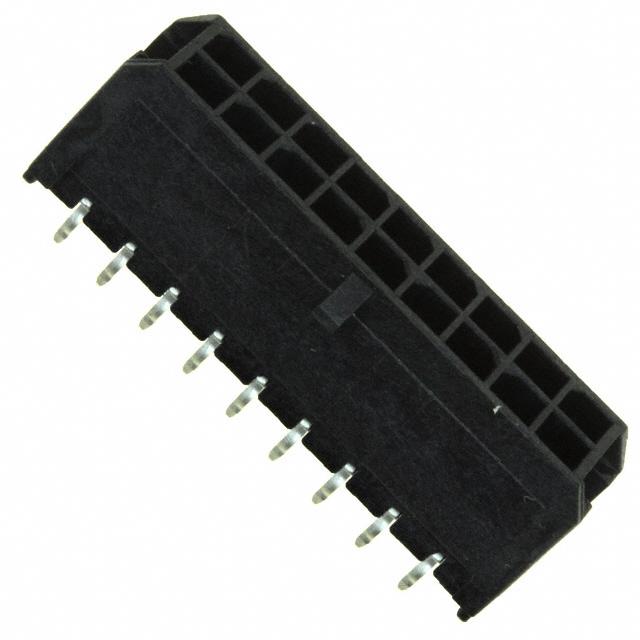

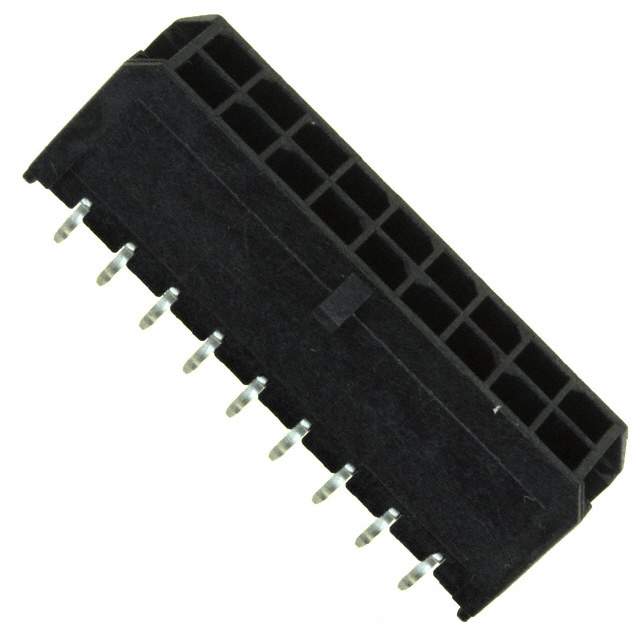

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面安装，双排，垂直，与PCB偏光PEG， 18电路 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Dual Row, Vertical, with PCB Polarizing Peg, 18 Circuits
针座 通孔 18 位置 0.118"（3.00mm）
得捷:
CONN HEADER VERT 18POS 3MM
艾睿:
Whether you have an AC or DC power entry module, this 0430451814 power connector from Molex comes in a variety of types to support all sorts of modules. This HDR connector&s;s 18 contacts that are made out of brass alloy and plated with gold over nickel. It has a header type gender. This connector has a single port. It has a maximum voltage rating of 600 V. It has a straight body orientation. Its pitch is 3 mm. 0430451814 is housed in liquid crystal polymer. This device has a maximum current rating of 5 A/contact. The component will be shipped in tray format. Its 18 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 105 °C. This product is 31.15 mm long, 9.91 mm tall and 8.77 mm deep.
安富利:
Conn Wire to Board HDR 18 POS 3mm Solder ST Thru-Hole Tray
Chip1Stop:
Conn Wire to Board HDR 18 POS 3mm Solder ST Thru-Hole Tray
Verical:
Conn Wire to Board HDR 18 POS 3mm Solder ST Top Entry Thru-Hole Micro-Fit 3.0™ Tray
