0537801470

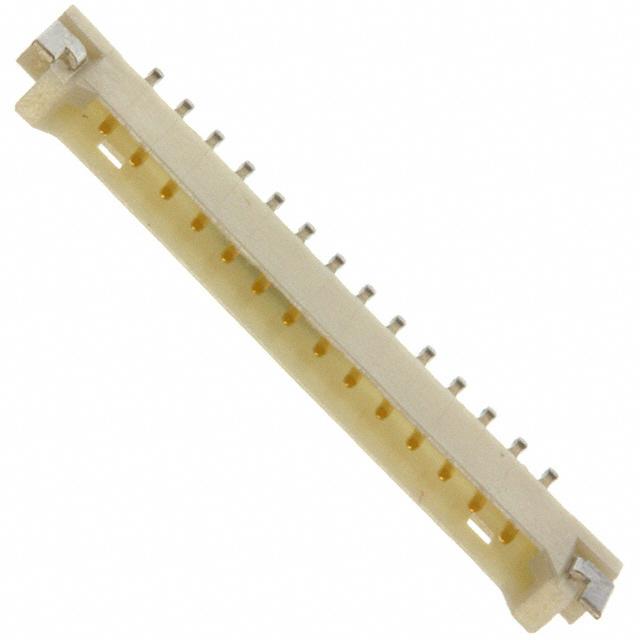

1.25毫米（ .049 “ ）间距的PanelMate ™接头，表面贴装，直角， 1.90毫米（ 0.075 ” ）的高度，无铅， 14电路 1.25mm .049" Pitch PanelMate™ Header, Surface Mount, Right Angle, 1.90mm.075" Height, Lead-free, 14 Circuits

Connector Header Surface Mount, Right Angle 14 position 0.049" 1.25mm

得捷:
CONN HEADER SMD R/A 14POS 1.25MM

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this wire to board 0537801470 header connector from Molex. This HDR connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 125 V. It has a header type gender. It has a right angle body orientation. Its pitch is 1.25 mm. This is a 1-row connector. This device has a maximum current rating of 1 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It uses the solder termination method. This product is 22.65 mm long, 1.85 mm tall and 6.5 mm deep. 0537801470 is housed in natural polyphenylene sulfide. This connector has an operating temperature of -40 to 85 °C.

安富利:
Conn Wire to Board HDR 14 POS 1.25mm Solder RA SMD Embossed T/R

Chip1Stop:
Conn Wire to Board HDR 14 POS 1.25mm Solder RA SMD Embossed T/R
